Network Camera

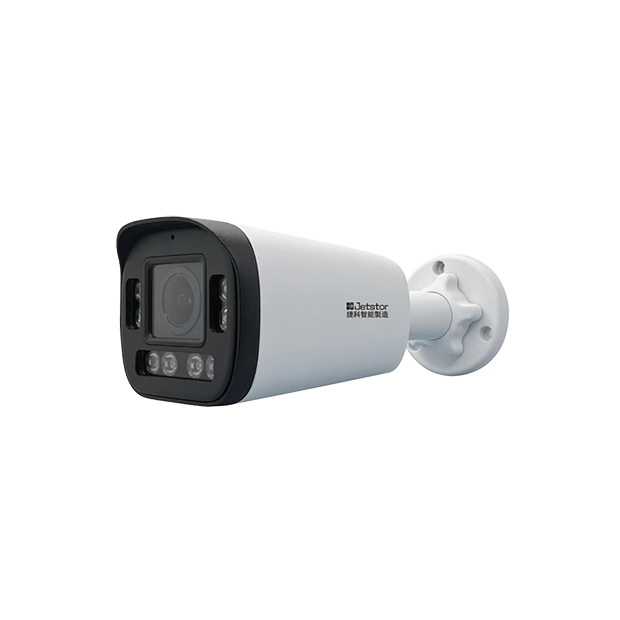

JV-TG3005N-H30F Gun type camera
JV-TG3005N-H30F Gun type camera
JV-TG3005N-H30F gun type camera, with 3 million pixels, adopts H.264/H.265 image compression standard. Providing clear images of day and night is suitable for most application scenarios.
DETAIL
1、1/3 "3 million pixel CMOS sensor
2、Support anti face overexposure and defogging function
3、Supports automatic white balance, high color reproduction, and realistic images
4、Supports H.265 and H.264 encoding
5、Support variable bitrate, while setting the video image quality, it is also possible to limit the compressed bitrate of the video image
6、Supports adjustable bitstreams ranging from 0.1Mbps to 3Mbps; Support frame rate adjustable from 1 to 25 frames per second
7、Alarm pre recording function
8、Support audio access (optional)
9、Supports 10/100M Ethernet interface
Product specifications
1、Image sensor: 1/3 "3 megapixel CMOS (or equivalent functional specification component)
2、Fixed focus lens：4mm, 6mm, 8mm (lens optional)
3、Signal to noise ratio: ≥ 50dB
4、Minimum illumination: Color mode: 0.01Lux black and white mode: 0.001Lux
5、Color/Black Conversion: Automatic, Manual, Timed Control
6、Wide Dynamic: Support
7、White Balance: Automatic
8、3D noise reduction: supports
9、Image compression standard: H.264/H.265
10、Image resolution: Main stream: 25FPS @ (2304×1296，1920×1080，1280×720); Substream: D1, VGA, 640×360;
11、Output bitrate: Supports adjustable bitrates ranging from 0.1Mbps to 3Mbps; Support amplitude rate adjustable from 1 to 25 frames per second
12、Audio: G.711 encoding standard, linear input/output, supports two-way voice intercom (optional)
13、Motion detection: Support
14、Prevent facial explosion：Support
15、Ethernet port: 1 RJ45 10/100M Ethernet port
16、Protocol: Supports network protocols such as HTTP/RTSP/DHCP/NTP/ONVIF
17、Power Supply：DC12V/POE
18、Power：6W Max
19、Working temperature：-10℃~50℃
20、Working humidity: 0%~90% RH (non condensing)
