Switch

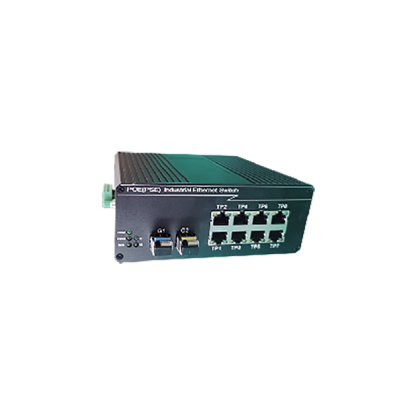

The JS-TSW10K-F2G8P-B is an 8-port Gigabit PoE switch, providing eight 10/100/1000M auto-sensing RJ45 ports and two Gigabit SFP fiber ports. Each RJ45 port supports automatic MDI/MDIX flipping and line-speed forwarding. All downlink ports support IEEE 802.3af/at PoE, automatically detecting and identifying compliant powered devices and supplying power to them via the network cable.

The JS-TSW26K-F2G24P-B is a 24-port full Gigabit PoE switch with digital display, providing 24 10/100/1000M auto-sensing RJ45 ports and two Gigabit SFP uplink ports. Each RJ45 port supports automatic MDI/MDIX flipping and line-speed forwarding.

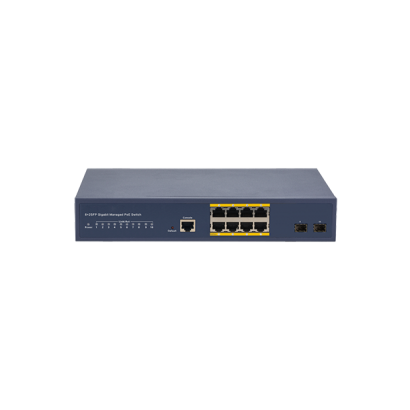

The JS-TSW10K2-F2G8MP-B managed switch is an 8-port full Gigabit Layer 2 managed PoE switch. It uses a new generation of high-performance hardware and software platforms to provide flexible and cost-effective full Gigabit access and uplink ports, supports comprehensive security protection mechanisms, comprehensive ACL/QoS policies and flexible VLAN functions, and is easy to manage and maintain.

The JS-TSW28K3-U4G24HMP-B managed PoE switch provides 24 10/100/1000Mbps PoE+ ports (maximum 30W per port) and 4 gigabit fiber-optic multiplexed interfaces. It adopts a non-blocking switching architecture to achieve full line-speed forwarding and is suitable for stable network connectivity and power supply requirements in scenarios such as edge access and security monitoring.

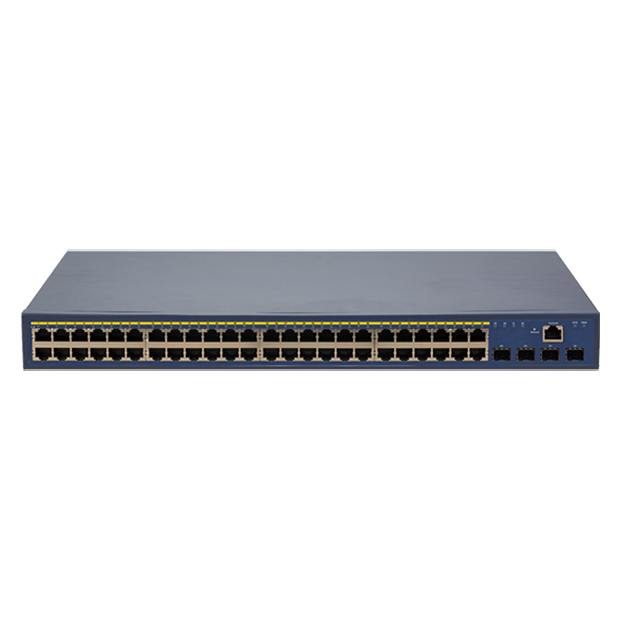

The JS-TSW52K3-T4G48MP-B managed PoE switch provides 48 Gigabit PoE+ ports (30W per port) and 4 10 Gigabit SFP+ uplink optical ports. It employs a non-blocking switching architecture to ensure full-line-speed forwarding, meeting the demands of high-density terminal access and high-speed uplink.

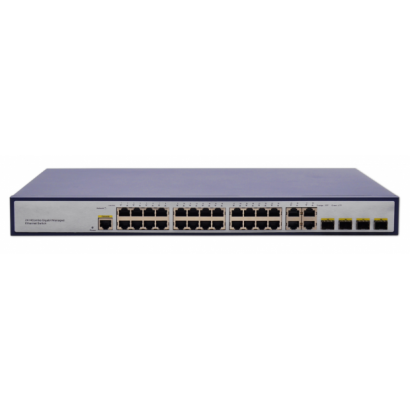

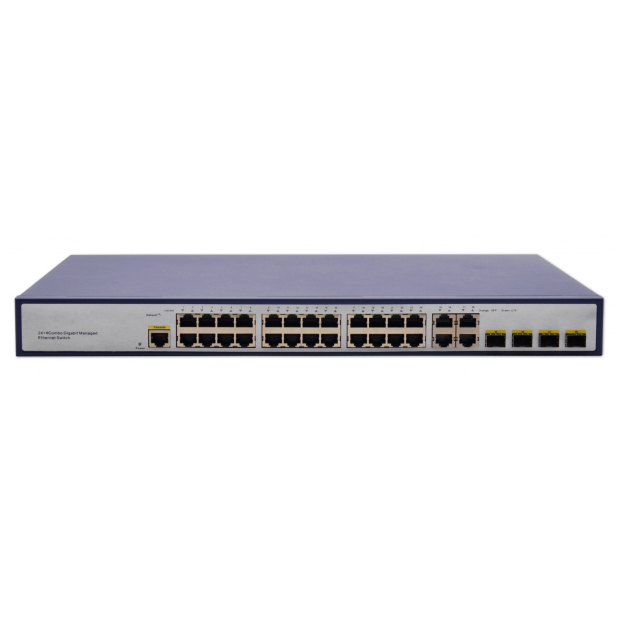

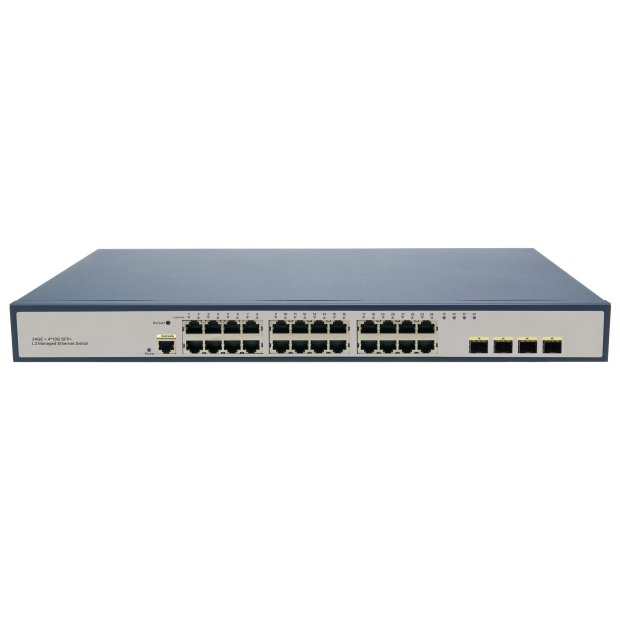

The JS-TSW28K3-U4G24M-B device supports IPv4/IPv6 static routing, enabling basic Layer 3 connectivity between different network segments. It features comprehensive Layer 2 switching capabilities, including 802.1Q VLAN, Super VLAN, and Voice VLAN, allowing for flexible network partitioning and service isolation.

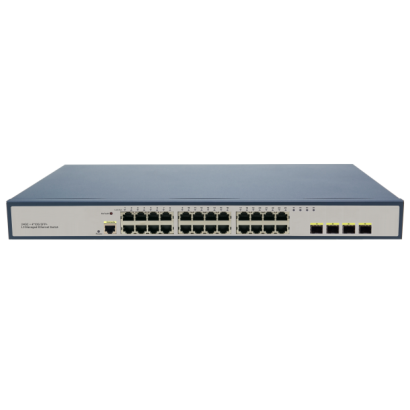

The JS-TSW28K3-T4G24M-B provides 24 Gigabit ports and 4 10 Gigabit SFP+ uplink optical ports. It adopts a non-blocking switching architecture to ensure full-speed forwarding and meet the needs of high-density terminal access and high-speed uplink.

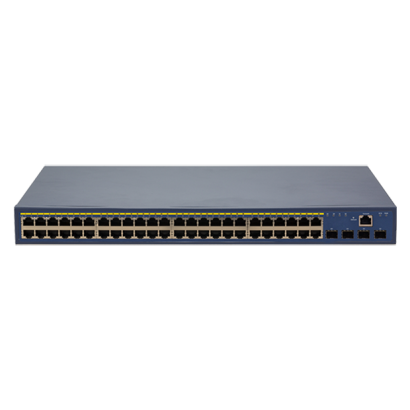

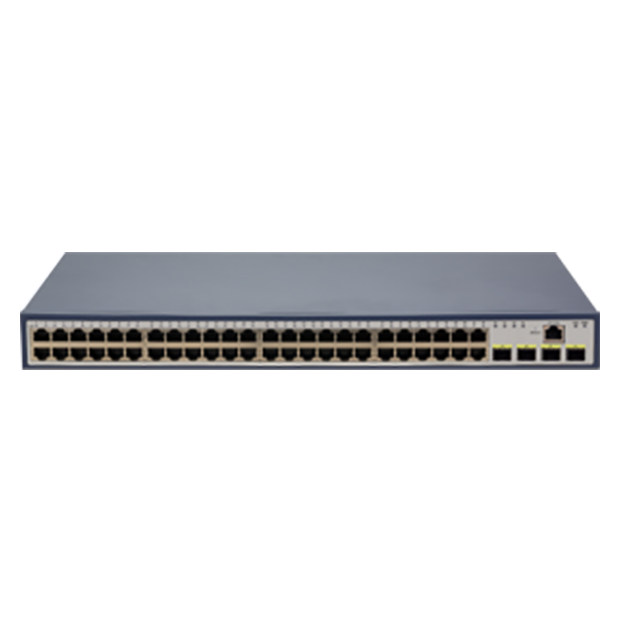

The JS-TSW52K3-T4G48M-B provides 48 Gigabit RJ45 ports and 4 10 Gigabit SFP+ uplink optical ports. It employs a non-blocking switching architecture to ensure full-line-speed forwarding, meeting the demands of high-density terminal access and high-speed uplink.

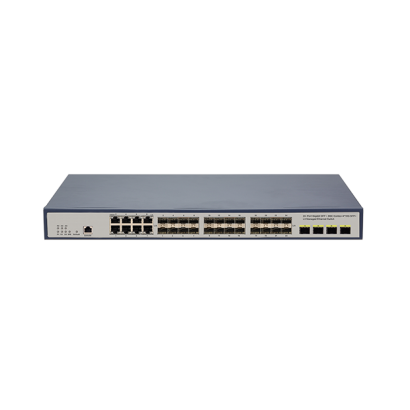

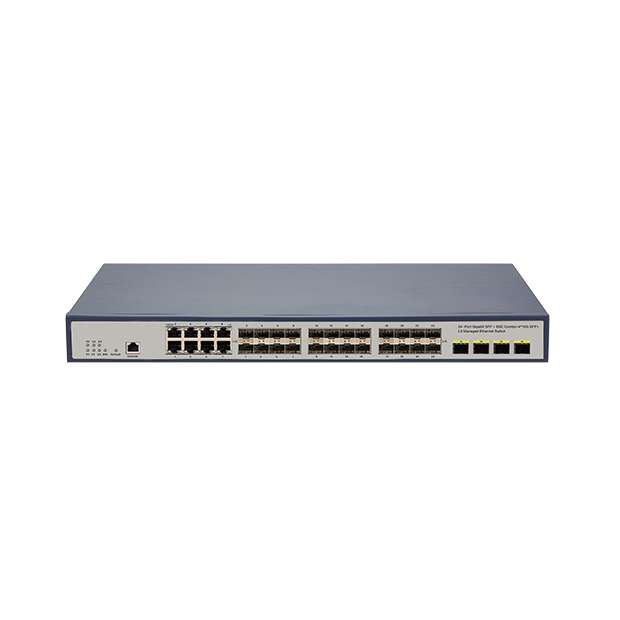

The JS-TSWF24K3-U8F24-B is a 24-port all-optical managed Ethernet switch, providing 16 Gigabit SFP optical port slots, 8 Gigabit optical-electrical multiplexed interfaces, and 4 10 Gigabit SFP+ uplink optical port slots, offering a cost-effective, stable, and reliable solution for aggregation layers and high-bandwidth access scenarios.

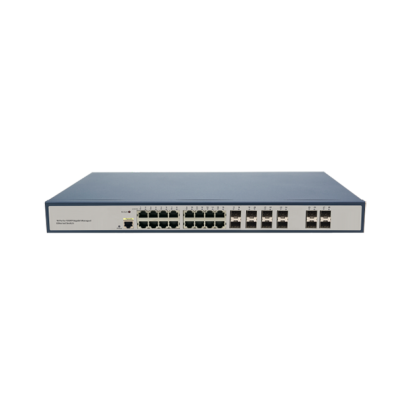

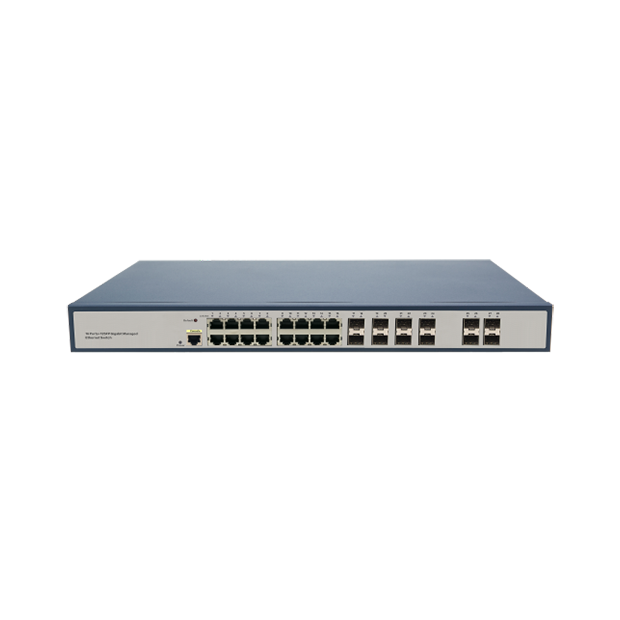

The JS-TSWF28K3-F12G16-B is a 28-port Gigabit Layer 3 managed Ethernet switch, providing 16 Gigabit RJ45 ports and 12 SFP optical ports for long-distance aggregation and cascading. It supports comprehensive security mechanisms, robust ACL/QoS policies, and rich VLAN functionality, making it easy to manage and maintain.
