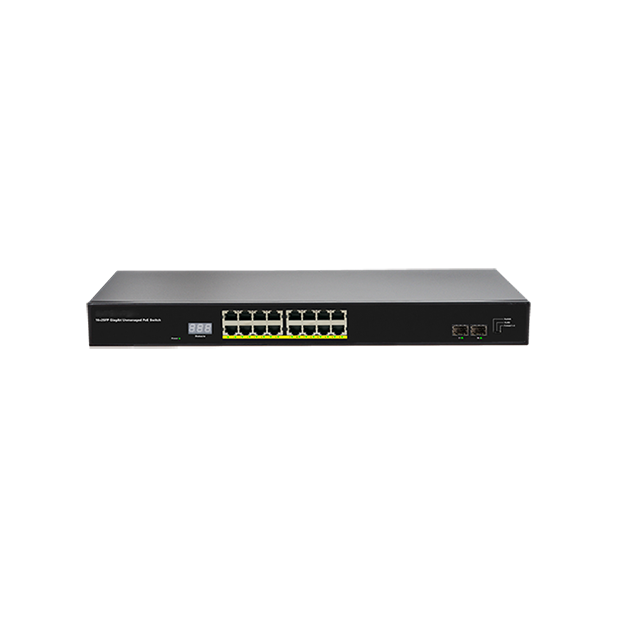

JS-TSW18K-F2G16P-B Switch

JS-TSW18K-F2G16P-B Switch

The JS-TSW18K-F2G16P-B is a 16-port Gigabit PoE switch with digital display, providing 16 10/100/1000M auto-sensing RJ45 ports and 2 Gigabit SFP fiber ports. Each RJ45 port supports MDI/MDIX auto-reversal and line-speed forwarding.
/
DETAIL
Product Features
1.Supports IEEE 802.3af/at PoE power supply standard
2.The maximum output power of a single port can reach 30W.
3.SmartLink power management and StepLink step-by-step startup functions safeguard the safe and stable operation of PoE switches;
4.Automatically detects and identifies standard PoE receiving devices, providing intelligent power supply without damaging non-standard PoE receiving devices or ordinary devices.
5.PoE ports support a priority mechanism, ensuring power supply to higher-priority ports when remaining power is insufficient.
Specifications
1.Downlink Port：16 10/100/1000M auto-sensing RJ45 ports
2.Uplink port：2 Gigabit SFP fiber optic ports
3.PoE standard power supply：IEEE 802.3at、IEEE 802.3af
4.Maximum output power of the whole machine：150W
5.LED indicator light：Link/Act (Link, Activity Indicator)
6.Transmission mode：IEEE 802.3 Full-Duplex Flow Control and Backpressure Half-Duplex Flow Control
7.Backplane bandwidth：36Gbps
8.Packet forwarding rate：26.78Mpps
9.MAC address capacity：8K
10.Standard Protocol：
IEEE802.3i 10 BASE-T，
IEEE802.3u 100 BASE-TX
IEEE802.3ab 1000 BASE-T
IEEE802.3z 1000 BASE-LX
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
IEEE802.3x Flow Control
IEEE802.3az EEE
11.Power specifications：AC 200~240V 50/60HZ
12.External dimensions：440mm×220mm×44mm
13.Ambient temperature：Operating temperature: 0℃～45℃; Operating humidity: 10%~90%  Storage temperature: -20℃～70℃; Storage humidity: 5%～95%
