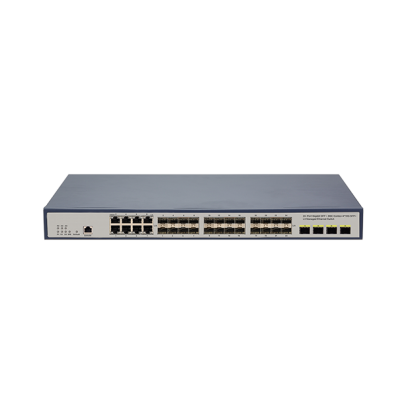

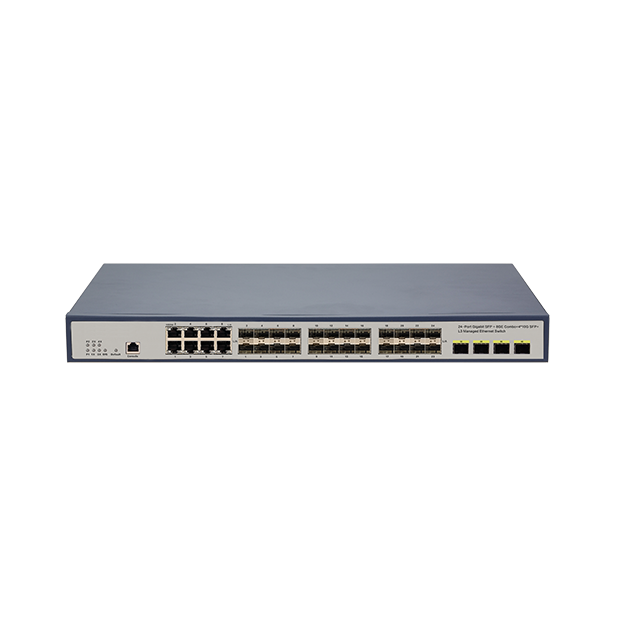

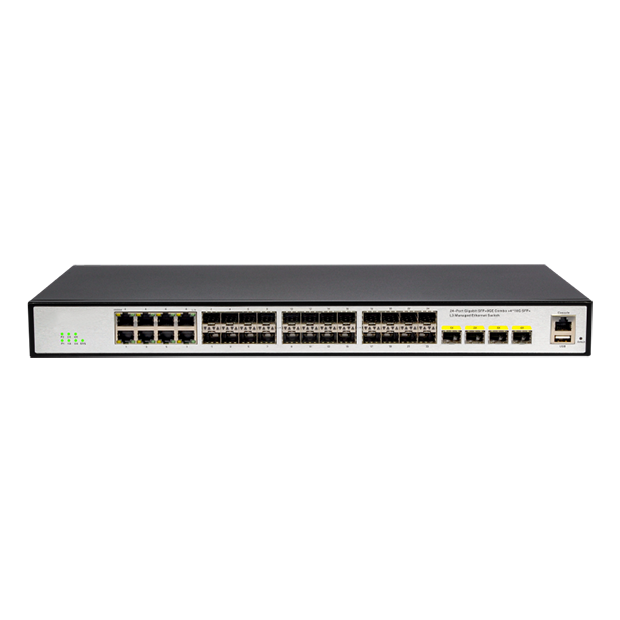

JS-TSWF24K3-U8F24-B Switch

The JS-TSWF24K3-U8F24-B is a 24-port all-optical managed Ethernet switch, providing 16 Gigabit SFP optical port slots, 8 Gigabit optical-electrical multiplexed interfaces, and 4 10 Gigabit SFP+ uplink optical port slots, offering a cost-effective, stable, and reliable solution for aggregation layers and high-bandwidth access scenarios.

Product Features
1.Supports four 10 Gigabit SFP+ optical port slots, providing high-bandwidth, low-latency non-blocking uplink to meet backbone aggregation requirements.
2.Supports 16 Gigabit SFP optical port slots and 8 Gigabit optical-electrical multiplexed interfaces, enabling multi-optical, multi-electrical, and multi-speed port configurations to flexibly meet diverse project networking needs.
3.It supports STP/RSTP/MSTP and ERPS ring network protocols, and can quickly recover within 50ms after a connection failure, ensuring that critical business operations are not interrupted.
4.IP/MAC/port/VLAN four-element binding, ARP protection, 802.1X, RADIUS, DoS protection, etc., comprehensively enhance network security.
5.L2~L4 deep filtering supports 8-level queue scheduling and SP/WRR algorithm to ensure priority forwarding of critical services such as voice and video.
Specifications
1、Downlink Port:16x1000M SFP；8x1000M SFP/RJ45 combo
2、Uplink port:4 10G SFP+
3、Console port：Support
4、USB port：1*USB 2.0
5、Backplane bandwidth:128Gbps
6、Packet forwarding rate:95.23Mpps
7、MAC address capacity:16K
8、Standard Protocol:
IEEE 802.3i 10 BASE-T，
IEEE 802.3u 100 BASE-TX
IEEE 802.3ab 1000 BASE-T
IEEE 802.3ae 10 GE
IEEE 802.3z 1000 BASE-LX
IEEE 802.3x Flow Control
IEEE 802.1p
IEEE 802.1x
IEEE 802.1d
IEEE 802.1s
IEEE 802.3az EEE
9、Input voltage:100~240V 50/60HZ
10、Product dimensions:440mm×220mm×44mm
11、Ambient temperature:Operating temperature: 0℃～45℃, operating humidity: 10% - 90%, non-condensing. Storage temperature: -20℃～70℃; Storage humidity: 5% - 90%, non-condensing.
