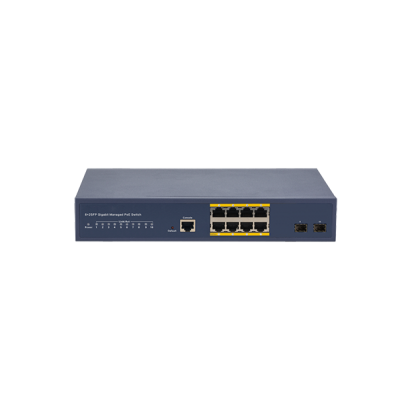

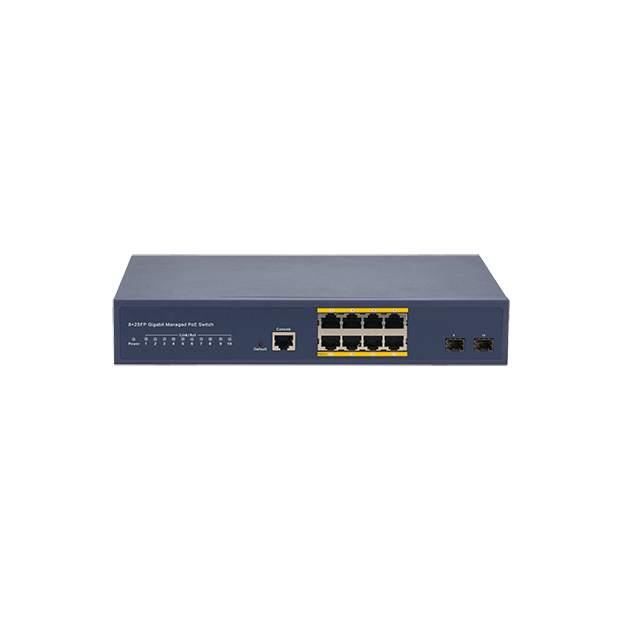

JS-TSW10K-F2G8MP Gigabit Managed POE Switch

JS-TSW10K-F2G8MP Gigabit Managed POE Switch

JS-TSW10K-F2G8MP managed PoE switch is an 8-port full Gigabit Layer 2 managed Po switch. It uses high-performance hardware and software platforms to provide flexible and cost-effective full Gigabit access and uplink ports. It supports comprehensive security protection mechanisms complete ACL/QoS policies, and flexible VLAN functions. It is easy to manage and maintain, meeting users' needs for easy management, high security, and low in network equipment.
JS-TSW10K-F2G8MP
/
DETAIL
Product Features
1、The PoE models support the IEEE 802.3af/at PoE power supply standards, meeting the PoE power supply for scenarios such as security surveillance, teleconferencing systems, and wireless coverage.
2、Supports PoE management, PoE port settings, and PoE watchdog
3、Automatic detection and recognition of standard PoE powered devices, intelligent power supply, will not burn non-standard PoE powered devices or ordinary devices
4、The maximum PoE output power of each port in PoE models can reach 30W
5、The PoE port supports priority mechanism, ensuring power supply for high-priority ports when the remaining power is insufficient.
6、Rich layer 2 multicast functions, including static multicast groups, forwarding operations for unknown multicast, selection of multicast forwarding methods, and fast departure mechanism
Specification parameters
1. Downstream ports: 8 10/100/1000M adaptive RJ45 ports
2. Upstream ports: 2 Gigabit SFP fiber ports
3. PoE standard power supply: IEEE 802.3at、IEEE 802.3af
4. Maximum output power of the whole machine: 120W
5. LED indicator light: Link/ACT (link, activity indicator light)
6. Transmission mode: IEEE802.3 full duplex flow control and Backpressure half duplex flow control
7. Backplane bandwidth: 20Gbps
8. Packet forwarding rate: 14.88Mpps
9. MAC address capacity: 8K
10. Standard protocol:
IEEE802.3i 10 BASE-T，
IEEE802.3u 100 BASE-TX
IEEE802.3ab 1000 BASE-T
IEEE802.3z 1000 BASE-LX
IEEE802.3x Flow Control
IEEE802.1p
IEEE802.1x
IEEE802.1d
IEEE802.1s
IEEE802.3az EEE
11. Power specifications: AC 100~240V 50/60HZ
12. Appearance dimensions: 270mm × 181mm × 44mm
13. Environmental temperature: Operating temperature: 0 ℃~45 ℃, Operating humidity: 10%~90%, Storage temperature: -20%~70%, Storage humidity: 5%~95%
