Switch

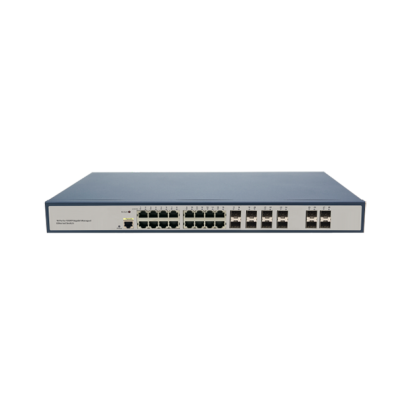

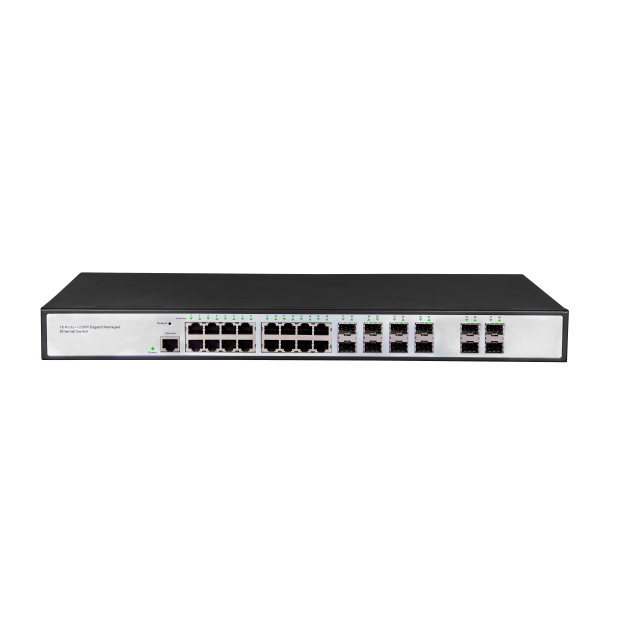

JS-TSWF28K-F12G16 Convergence Switch
JS-TSWF28K-F12G16 Convergence Switch
JS-TSWF28K-F12G16 is a gigabit three-layer managed switch, adopting the new generation of high-performance hardware and software platform, providing 16 gigabit RJ45 ports, 12 SFP optical ports for long-distance aggregation cascade, supporting a complete security protection mechanism, perfect ACL/QoS policy and rich VLAN functions, easy to manage and maintain.
DETAIL
1. 16 10/100/1000M automatic detection RJ45 ports
2. 12 Gigabit SFP fiber ports
3. Backplane bandwidth: 256Gbps
4. Packet forwarding rate: 41.67Mpps
5. Support DHCP servers to assign IP addresses to hosts in the network
6. Support port alarms, monitor port status, and ensure network stability
7. Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering, to achieve link backup and path optimization
8. Support LLDP, making it convenient for network management systems to query and determine the communication status of links
9. Rich three-layer network management functions
Specification parameters
1、Ports: 16 10/100/1000M automatic detection RJ45+12 Gigabit SFP fiber ports
2、LED indicator lights: PWR (power indicator light), Link/ACT (link, activity indicator light)
3. Transmission mode: IEEE802.3 full duplex flow control and Backpressure half duplex flow control
4. Backplane bandwidth: 256Gbps
5. Packet forwarding rate: 41.67Mpps
6. MAC address capacity: 8K
7、Standard protocol:
IEEE802.3i 10 BASE-T，
IEEE802.3u 100 BASE-TX
IEEE802.3ab 1000 BASE-T
IEEE802.3z 1000 BASE-LX
IEEE802.3x Flow Control
IEEE802.1p
IEEE802.1x
IEEE802.1d
IEEE802.1s
IEEE802.3az EEE
8. Power specifications: AC 100~240V 50/60HZ
9. Appearance dimensions: 440mm × 220mm × 44mm
10. Environmental temperature: Operating temperature: 0 ℃~45 ℃, Operating humidity: 10%~90%, Storage temperature: -20%~70%, Storage humidity: 5%~95%
