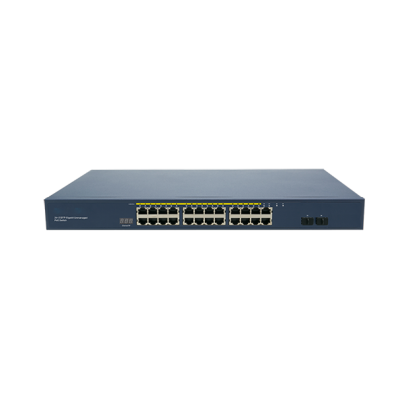

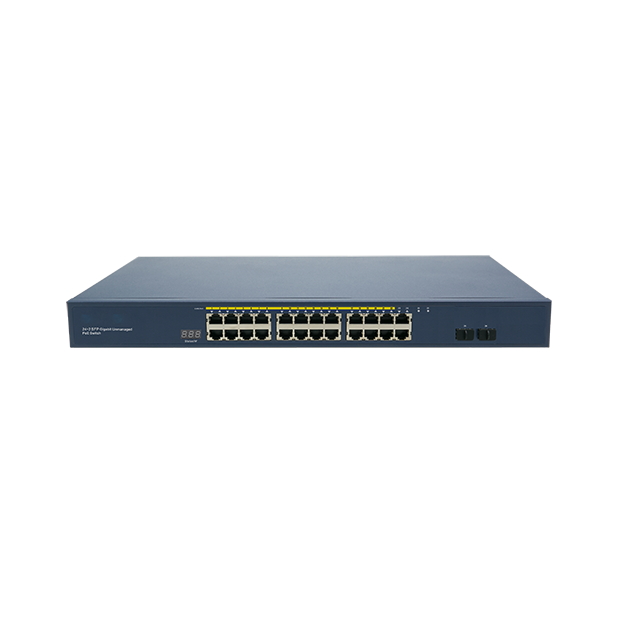

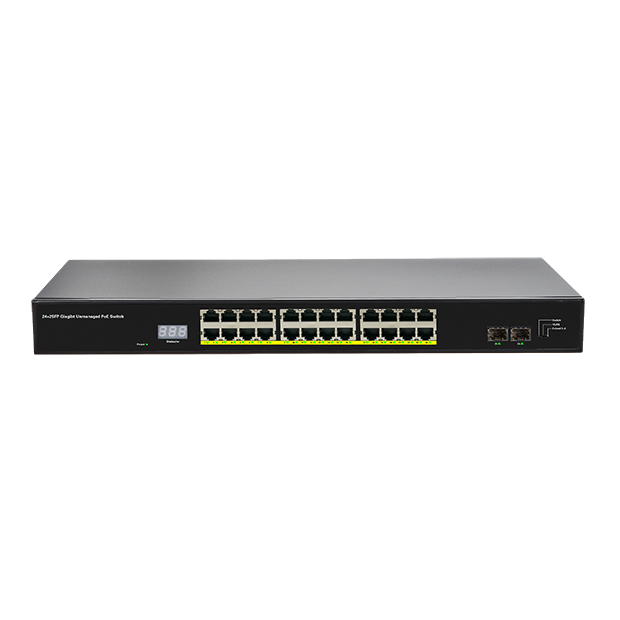

JS-TSW26K-F2G24P-B Gigabit POE Switch

JS-TSW26K-F2G24P-B Gigabit POE Switch

The JS-TSW26K-F2G24P-B is a 24-port full Gigabit PoE switch with digital display, providing 24 10/100/1000M auto-sensing RJ45 ports and two Gigabit SFP uplink ports. Each RJ45 port supports automatic MDI/MDIX flipping and line-speed forwarding.
/
DETAIL
Product Features
1. Supports IEEE 802.3af/at PoE power supply standard
2.The maximum output power of a single port can reach 30W
3.SmartLink power management and StepLink step-by-step startup functions ensure the safe and stable operation of PoE switches;
4.Automatically detect and identify standard PoE powered devices, intelligent power supply, will not burn non-standard PoE powered devices or ordinary devices
5.PoE ports support a priority mechanism. When the remaining power is insufficient, the power supply of high-priority ports is prioritized.
Specification parameters
1. Port: 24 10/100/1000M adaptive RJ45 ports+2 Gigabit SFP fiber ports
2. PoE standard power supply: IEEE 802.3at、IEEE 802.3af
3. Maximum output power of the whole machine: 250W
4. LED indicator light: Link/ACT (link, activity indicator light)
5. Transmission mode: IEEE802.3 full duplex flow control and Backpressure half duplex flow control
6. Backplane bandwidth: 52Gbps
7. Packet forwarding rate: 38.69 Mpps
8. MAC address capacity: 8K
9. Standard protocol:
IEEE802.3i 10 BASE-T
IEEE802.3u 100 BASE-TX
IEEE802.3ab 1000 BASE-T
IEEE802.3z 1000 BASE-X
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
IEEE802.3x Flow Control
IEEE802.3az EEE
10. Power specifications: AC 100~240V 50/60HZ
11. Appearance dimensions: 440mm × 220mm × 44mm
12. Environmental temperature: Operating temperature: 0 ℃~45 ℃, Operating humidity: 10%~90%, Storage temperature: -20℃~70℃, Storage humidity: 5%~95%
