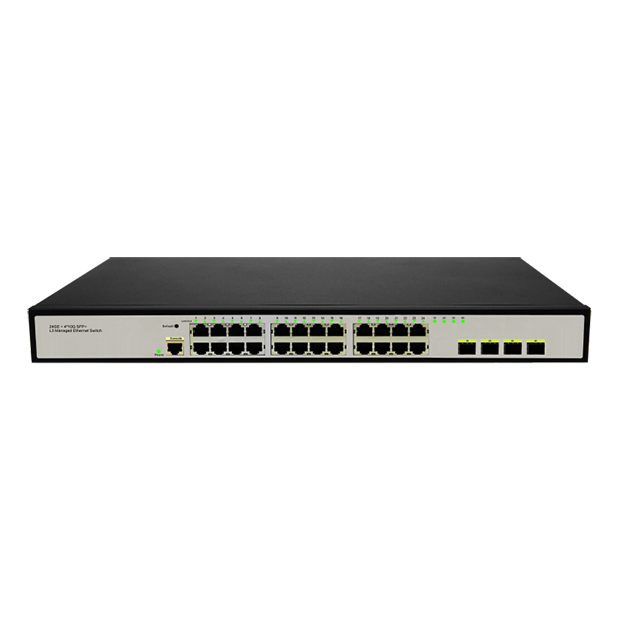

JS-TSW28K3-T4G24M Core Switch
JS-TSW28K3-T4G24M Core Switch
JS-TSW28K3-T4G24M 24 Gigabit three-layer management switch, using a new generation of high-performance hardware and software platform, providing flexible full gigabit access and cost-effective 10 gigabit uplink ports, supporting three-layer routing protocols, complete security protection mechanisms, perfect ACL/QoS policies, and rich VLAN functions, easy to manage and maintain, suitable for enterprise, campus and other large network core or aggregation layers
DETAIL
1. 24 10/100/1000M automatic detection RJ45 ports
2. 4 10G SFPs+
3. Backplane bandwidth: 128 Gbps
4. Packet forwarding rate: 95.23Mpps
5. Support DHCP servers to assign IP addresses to hosts in the network
6. Support port alarms, monitor port status, and ensure network stability
7. Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering, to achieve link backup and path optimization
8. Support LLDP, making it convenient for network management systems to query and determine the communication status of links
9. Support three-layer network management function
Specification parameters
1. Downstream ports: 24 10/100/1000M automatic detection RJ45
2. Upstream ports: 4 10G SFPs+
3. LED indicator lights: PWR (power indicator light), Link/ACT (link, activity indicator light)
4. Transmission mode: IEEE802.3 full duplex flow control and Backpressure half duplex flow control
5. Backplane bandwidth: 128Gbps
6. Packet forwarding rate: 95.23Mpps
7. MAC address capacity: 16K
8. Standard protocol:
IEEE802.3i 10 BASE-T，
IEEE802.3u 100 BASE-TX
IEEE802.3ab 1000 BASE-T
IEEE802.3z 1000 BASE-LX
IEEE802.3ae 10GBase
IEEE802.3x Flow Control
IEEE802.1p
IEEE802.1x
IEEE802.1d
IEEE802.1s
IEEE802.3az EEE
9. Power specifications: AC 100~240V 50/60HZ
10. Appearance dimensions: 440mm × 220mm × 44mm
11. Environmental temperature: Operating temperature: 0 ℃~45 ℃, Operating humidity: 10%~90%, Storage temperature: -20%~70%, Storage humidity: 5%~95%
