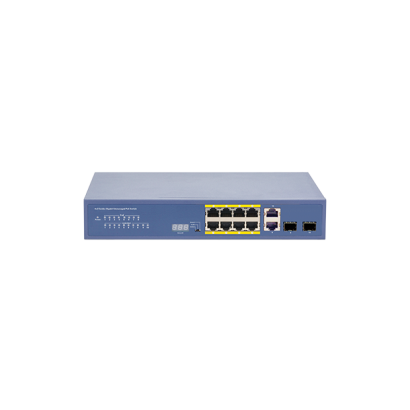

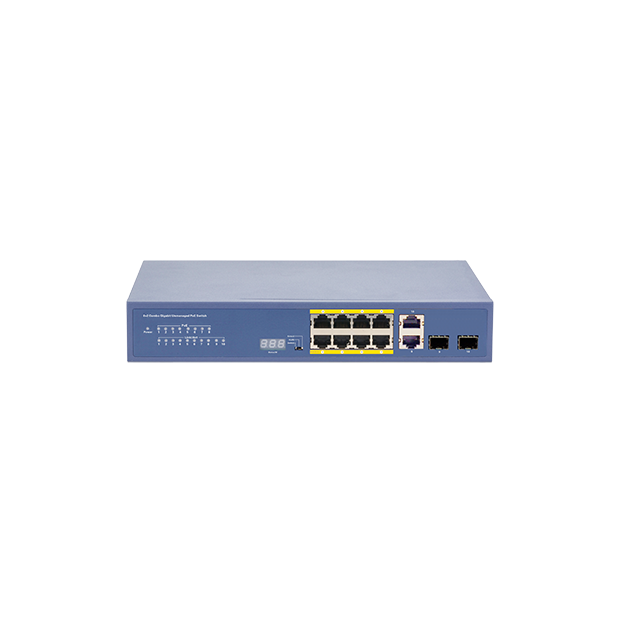

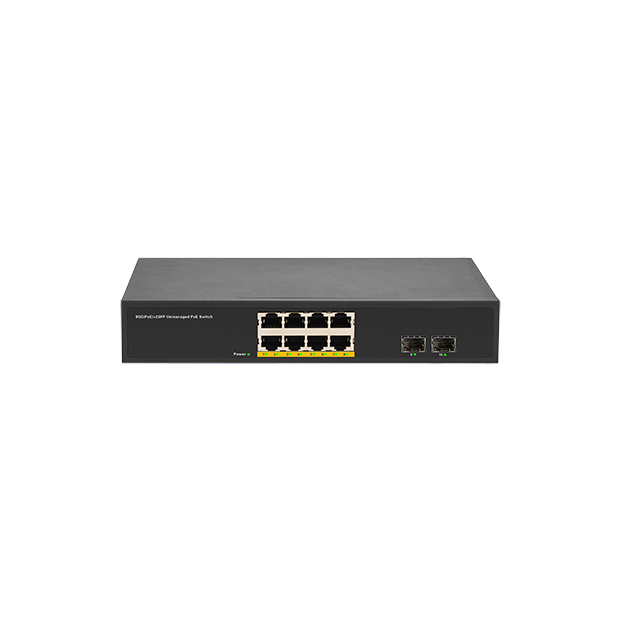

JS-TSW10K-F2G8P-B Gigabit POE Switch
JS-TSW10K-F2G8P-B Gigabit POE Switch
The JS-TSW10K-F2G8P-B is an 8-port Gigabit PoE switch, providing eight 10/100/1000M auto-sensing RJ45 ports and two Gigabit SFP fiber ports. Each RJ45 port supports automatic MDI/MDIX flipping and line-speed forwarding. All downlink ports support IEEE 802.3af/at PoE, automatically detecting and identifying compliant powered devices and supplying power to them via the network cable.
DETAIL
1. Supports IEEE 802.3af/at PoE power supply standard
2.The maximum output power of a single port can reach 30W
3.SmartLink power management and StepLink step-by-step startup functions ensure the safe and stable operation of the PoE switch;
4.Automatically detect and identify standard PoE powered devices, intelligent power supply, and will not burn non-standard PoE powered devices or ordinary devices
5.PoE ports support a priority mechanism. When the remaining power is insufficient, the power supply of high-priority ports is prioritized.
Specification parameters
1. Downstream ports: 8 10/100/1000M adaptive RJ45
2. Upstream ports: 2 Gigabit SFP fiber optic ports
3. PoE standard power supply: IEEE 802.3at、IEEE 802.3af
4. Maximum output power of the whole machine: 120W
5. LED indicators:Power (power indicator) Link/Act (link, activity indicator)
6. Transmission Mode: IEEE802.3 full-duplex flow control and backpressure half-duplex flow control
7. Backplane bandwidth: 20Gbps
8. Packet forwarding rate: 14.88Mpps
9. MAC address capacity: 4K
10. Standard protocol:
IEEE802.3i 10 BASE-T
IEEE802.3u 100 BASE-TX
IEEE802.3ab 1000 BASE-T
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
IEEE802.3x Flow Control
IEEE802.3az EEE
11. Power specifications: AC 100~240V 50/60HZ
12. Appearance dimensions: 270mm × 181mm × 44mm
13. Environmental temperature: Operating temperature: 0 ℃~45 ℃, Operating humidity: 10%~90%, Storage temperature: -20℃~70℃, Storage humidity: 5%~95%
