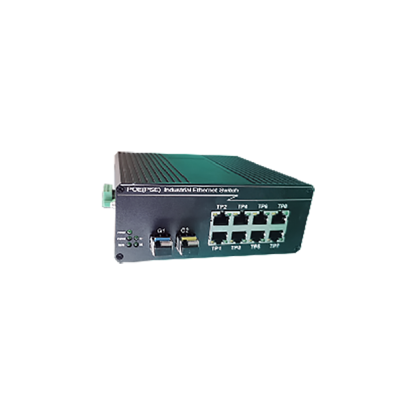

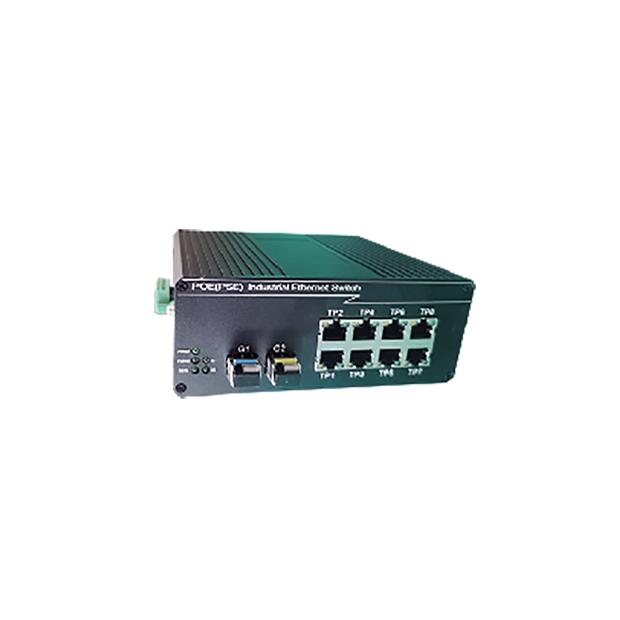

JS-TSW10Z-F2G8P Industrial Switch
JS-TSW10Z-F2G8P Industrial Switch
JS-TSW10Z-F2G8P PoE unmanaged industrial switch is designed for harsh industrial environments. It can realize the conversion between 8 10/100/1000Base-Tx (with PoE function) twisted pair electrical signals and 2 1000Base-Fx optical signals, and realize data transmission between two network connection media by using switching technology and storage and forwarding technology.
DETAIL
1.8 10/100/1000Base-Tx electrical ports compliant with IEEE 802.3af/at PoE standards, 2 1000Base-Fx optical ports
2. Each PoE port can provide up to 30W 48V DC power output
3. The electrical interface (RJ45 interface) supports 10/100/1000M automatic detection, full/half duplex mode, MDI/MDI-X automatic detection
4. The optical interface supports three optical fiber transmission modes: multi-mode dual-fiber, single-mode dual-fiber, and single-mode single-fiber.
5. Support wide range DC input, redundant dual power input 48VDC (44 ~ 57VDC)
6. Wide temperature range: working temperature -40℃~ +85℃
Specification parameters
1. MAC address table: 8K
2. Packet buffer: 2Mbit
3. Packet forwarding rate: 14.88Mpps
4.Switching capacity: 58Gbps
5.Switching delay: <5μs
6. Data exchange method: Store-and-Forward
7. Maximum filtering speed: 148800pps (100M)
8. Dimensions: 155*138*60 MM (length*width*height)
9. Shell: Aluminum chassis heat dissipation surface design, fanless, IP40 protection grade
