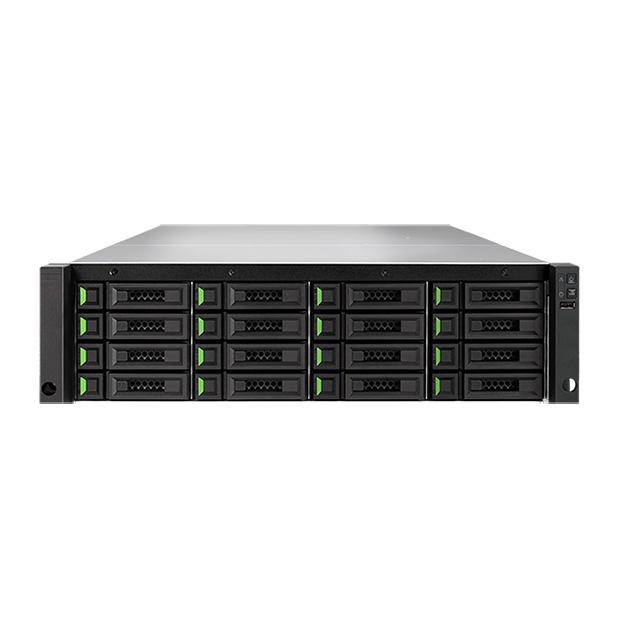

JS-T5616-DT4 Dual Control SAN Storage
JS-T5616-DT4 Dual Control SAN Storage
JS-T5616-DT4 is a dual control architecture and an entry-level hybrid flash storage array. Focused on providing excellent performance and cost-effectiveness for workloads of small and medium-sized enterprises. It is an ideal choice for modern enterprise applications such as virtualization, image media editing, large-scale monitoring, and backup applications.
DETAIL
1. High performance SAN storage system supporting dual active controllers
2. Support hot swapping of hard drives
3. 99.999% high availability design with no single point of failure
4. Adopting a 64 bit dedicated storage processor
5. Adopting 8GB DDR4 ECC DIMM, the memory of a single controller can be expanded to 256GB
6. Excellent performance with 12.8 GB/s and 1.3M IOPS
7. Excellent scalability of up to 10.9 PB
8. Non disruptive firmware upgrade ensures continuous data service with zero downtime
9. Each controller is equipped with 4 ports of 10GbE and up to 12 host ports, allowing direct connection to multiple hosts without the need for a switch
10. Optional high-speed 25 GbE iSCSI and 32 Gb Fibre Channel host cards
11. Data can be accessed within 5 minutes after initialization
12. SAS wake-up allows you to remotely turn on/off all cascaded JSDAS expansion units to save power
Specification parameters
1. Architecture: Dual Active Controller
2. Processor: 64 bit dedicated storage processor
3. Memory: 8GB DDR4 ECC DIMM (single controller)
4. Total number of memory slots: 4 (single controller)
5. Memory expandable to: 256 GB (single controller)
6. Number of hard drive slots: 3.5 "slots x 16
7. Maximum number of hard disk slots for expansion units: 496
8. Compatible hard drive types: 3.5 "&2.5" SAS, NL-SAS, SED HDD 2.5 "SAS, SED SSD
9. Supports hot swapping of hard drives: Yes
10. PCIe expansion port: (Gen3x8 slot) x 2
11. 1 GbE RJ45 network port: 1 (standard management port, single controller)
12. 10 GbE SFP+network ports: 4 iSCSI (standard, single controller)
13. Port (optional):
4 iSCSI 10 GbE SFP+network port
2 iSCSI 10 GbE RJ45 network port
2 iSCSI 25 GbE SFP28 network port
2 16 Gb SFP+ Fiber Channel
4 16 Gb SFP+
