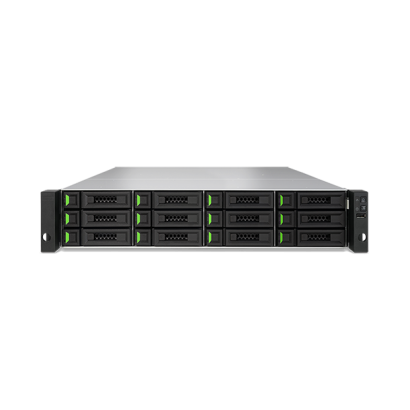

JS-T5612-ST4 Single Control SAN Storage

JS-T5612-ST4 Single Control SAN Storage

JS-T5612-ST4 is an entry-level hybrid flash storage array. It focuses on providing excellent performance and cost efficiency for the workloads small and medium-sized enterprises. It is an ideal choice for modern enterprise applications such as virtualization, video media editing, large-scale surveillance, and backup applications

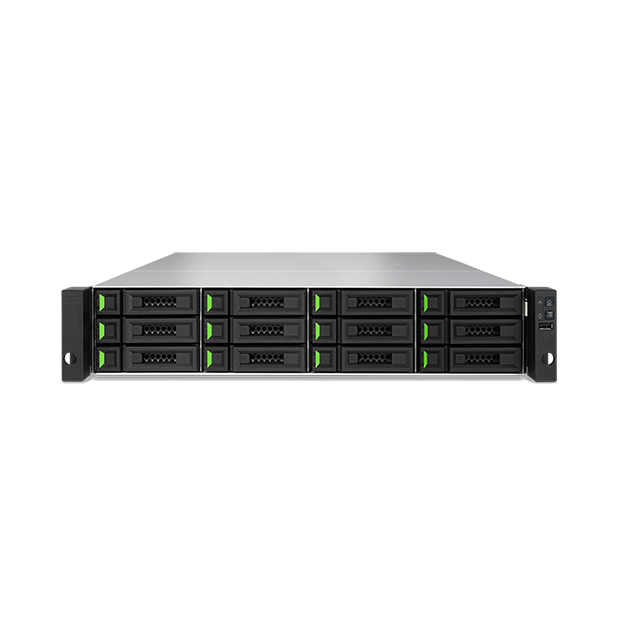

JS-T5612-ST4
/
DETAIL
Product Features
1. Upgradeable single controller SAN storage system
2. Support hot swapping of hard drives
3. 99.999% high availability design with no single point of failure
4. Adopting a 64 bit dedicated storage processor
5. Adopting 8GB DDR4 ECC DIMM, the memory of a single controller can be expanded to 256GB
6. Excellent performance with 12.8 GB/s and 1.3M IOPS
7. Excellent scalability of up to 10.8 PB
8. Each controller is equipped with 4 ports of 10GbE and up to 12 host ports, allowing direct connection to multiple hosts without the need for a switch
9. Optional high-speed 25 GbE iSCSI  and 32 Gb Fibre Channel host cards
10. Data can be accessed within 5 minutes after initialization
11. SAS wake-up allows you to remotely turn on/off all cascaded JSDAS expansion units to save power
Specification parameters
1. Architecture: Single Controller
2. Processor: 64 bit dedicated storage processor
3. Memory: 8GB DDR4 ECC DIMM (single controller)
4. Total number of memory slots: 4 (single controller)
5. Memory expandable to: 256 GB (single controller)
6. Number of hard drive slots: 3.5 "slots x 12
7. Maximum number of hard disk slots for expansion units: 492
8. Compatible hard drive types: 3.5 "&2.5" SAS, NL-SAS, SED HDD 3.5 "&2.5" SATA (*) HDD 2.5 "SAS, SATA (*), SED SSD (*) Only applicable to single controller systems
9. Supports hot swapping of hard drives: Yes
10. PCIe expansion port: (Gen3x8 slot) x 2
11. 1 GbE RJ45 network port: 1 (standard management port, single controller)
12. 10 GbE SFP+network ports: 4 SCSI (standard, single controller)
13、Port (optional)：
4 iSCSI 10 GbE SFP+ network port
2 iSCSI 10 GbE RJ45 network port
2 iSCSI 25 GbE SFP28 network port
2 16 Gb SFP+ Fiber Channel
4 16 Gb SFP+ Fiber Channel
2 32 Gb SFP28 Fiber Channel
14. 12Gb/s SAS wide ports: 2 (standard, single controller)
15. RAID type: 0/1/5/6/10/50/60/5EE/6EE/50EE/60EE/N-way mirror
16. Storage efficiency: streamlined configuration
17. Software acceleration: SSD cache (optional) and automatic layering (optional)
18. Data protection: snapshot/local storage volume cloning
19. Remote replication: asynchronous (built-in) and synchronous (optional)
20. Safety: HTTPS/SSH/iSCSI CHAP/ISE&SED
21. Size: 88x438x515mm
22. Memory protection: Cache to flash memory (supercapacitor module+flash module) (optional)
23. Power supply: 850Wx2 (80 PLUS Platinum certified)
24. System fans: 4
25. Temperature: Operating temperature: 0 to 40 ℃ Storage temperature: -10 ℃ to 50 ℃
26. Humidity: Working relative humidity: 20% to 80% Non condensing storage relative humidity: 10% to 90%
