Network Camera

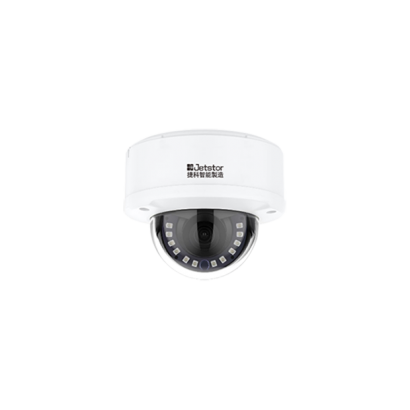

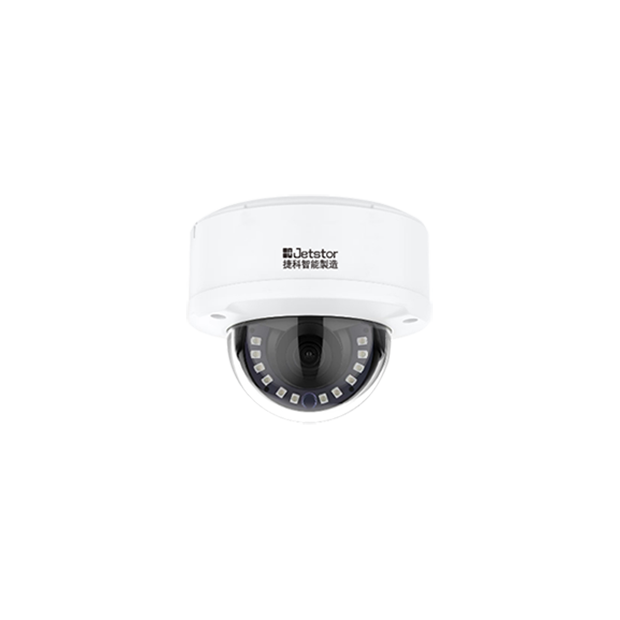

JV-TD5005N-H50F hemispherical camera
JV-TD5005N-H50F hemispherical camera
JV-TD5005N-H50F hemispherical camera with 5 million pixels, using H.264/H.265 image compression standards. Providing clear images of day and night is suitable for most application scenarios.
DETAIL
1、1/2.8 "5-megapixel CMOS sensor
2、Support anti face overexposure and defogging function
3、Supports automatic white balance, high color reproduction, and realistic images
4、Supports H.265 and H.264 encoding
5、Support variable bit rate, while setting the image quality, it is also possible to limit the compressed bit rate of the image
6、Supports adjustable bitstreams ranging from 0.1Mbps to 6Mbps; Support frame rate adjustable from 1 to 25 frames per second
7、Support audio access (optional)
8、Supports 10/100M Ethernet interface
Product specifications
1、Image sensor: 1/2.8 "5-megapixel CMOS sensor (or equivalent functional specification component)
2、Lens: 4mm
3、Signal to noise ratio: ≥ 50dB
4、Minimum illumination: Color mode: 0.01Lux black and white mode: 0.001Lux
5、Color/Black Conversion: Automatic, Manual, Timed Control
6、Wide Dynamic: Support
7、White Balance: Automatic
8、3D noise reduction: supports
9、Image compression standard: H.264/H.265
10、Image resolution: Main stream: 25FPS @ (2592 × 19442560 × 14402304 × 12961920 × 10801280 × 7201944 × 19441200 × 1200); Substream: D1, VGA, 640 × 360;
11、Output bitrate: Supports adjustable bitstreams ranging from 0.1Mbps to 6Mbps; Support amplitude rate adjustable from 1 to 25 frames per second
12、Audio: G.711 encoding standard, linear input/output, supports two-way voice intercom (optional)
13、Motion detection: Supports
14、Anti face explosion: supported
15、Ethernet port: 1 RJ45 10/100M Ethernet port
16、Protocol: Supports network protocols such as HTTP/RTSP/DHCP/NTP/ONVIF
17、Power Supply: DC12V/POE
18、Power: 6W Max
19、Working temperature: -10 ℃~50 ℃
20、Working humidity: 0%~90% RH (non condensing)
