Access control attendance machine

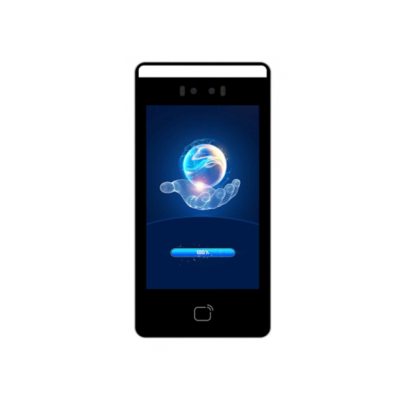

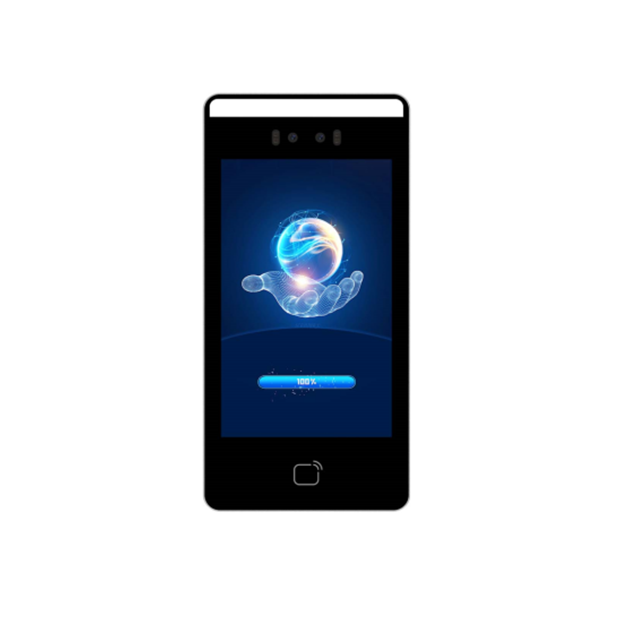

JV-TM1504A-FCD05 Facial Recognition Attendance and Access Control Machine
JV-TM1504A-FCD05 Facial Recognition Attendance and Access Control Machine
JV-TM1504A-FCD05 facial recognition attendance access control machine, equipped with a 5-inch high-resolution TOUCH screen. Supports 10/100M networking and rich peripheral security interfaces to meet user access control needs, enabling personnel authentication, access management, and attendance management.
DETAIL
1. Adopting a 5-inch high-resolution screen with a resolution of 480 * 854
2. Dual lens, supports live anti-counterfeiting, solves the problem of photo fraud
3. The device supports multiple access control functions
4. Support stranger detection
5. Support face selection, face enhancement, and face exposure to improve imaging quality
6. The device can be managed locally and supports querying, setting, and managing device parameters after logging in
7. Support automatic screen sleep mode, automatic human body sensing, and quick activation of fill light
8. 30000 facial database and 30000 Mifare/EM card database, with 150000 records stored
9. 1 10/100M Ethernet interface
Specification parameters
1. System: Android 11.0
2 CPU： 4-core ARM ® Cortex ™ A55 up to1.8GHz
3. Storage capacity: 2GB of RAM, 32GB of storage
4. Display screen: 5-inch, 170 ° IPS LCD screen, resolution 480 * 854
5. Touch screen: Supports
6. Ethernet: 10/100Mbps Ethernet network
7. Facial recognition: Supports
8. Mifare/EM card: Supports
9. Data interface: USB 2.0*1
10. Relay:* one
11. Serial port: RS485*1
12. Wigan: 26bit/34bit protocol
13. Adapter: DC12V/1.5A power supply
14. Working temperature:- 10℃～50℃
15. Working humidity: 20% to 90% (in non condensing water droplet state)
