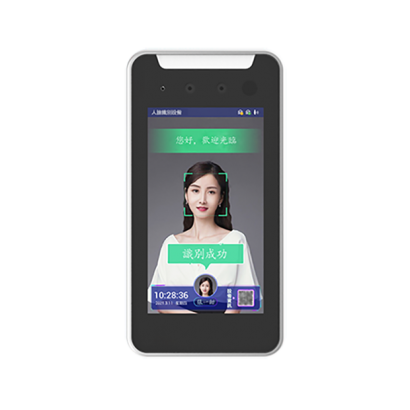

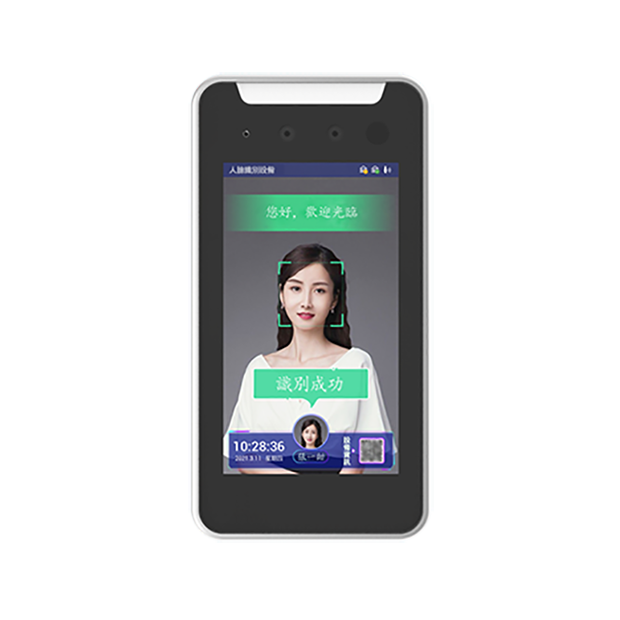

JV-TM1204-FNC05 Facial Recognition Attendance and Access Control Machine

JV-TM1204-FNC05 Facial Recognition Attendance and Access Control Machine

JV-TM1204-FNC05 Facial recognition attendance access control machine is a high-performance and highly reliable facial recognition product. The deep learning facial algorithm has fast recognition speed and higher accuracy, and can be applied to entrances and exits such as offices, communities, and banks to achieve personnel attendance and access control.
/
DETAIL
Product Features
1. Adopting a 5-inch IPS screen with a resolution of 720 * 1280
2. Dual lens, supports live anti-counterfeiting, solves the problem of photo fraud
3. The device supports multiple access control functions
4. Support stranger detection
5. Support face selection, face enhancement, and face exposure to improve imaging quality
6. The device can store user data and supports standalone operation in offline mode
7. The device can be managed locally and supports querying, setting, and managing device parameters after logging in
8. Support automatic screen sleep mode, automatic human body sensing, and quick activation of fill light
9. 1 10/100M network adaptive, RJ45 interface
Specification parameters
1.Operating System: Embedded Linux System
2.Display screen size: 5-inch IPS screen
3. Display screen resolution: 720 * 1280
4.Lens: High resolution fixed focus 3mm
5.Wide Dynamic: Digital Wide Dynamic
6.Fill light: natural light and infrared light
7.Storage capacity: 10000 facial database, 10000 card library, 150000 records storage
8.Recognition modes: facial recognition, on-screen swipe card (Mifare card), facial recognition+swipe card
9.Accurate identification: 1: N identification speed ≤ 0.2S/person, identification accuracy ≥ 99.97%
10.Identification distance: 0.3M-1.2M
11.Parameter settings: Black and white list, identification parameters, image settings, information display
12.Live detection: supported
13. Alarm management: blacklist alarm, anti disassembly alarm
14. Network interface: 1 10/100Mbps automatic detection network interface
15. Communication interface: 1 RS232 interface
16. Wigan interface: supports Wigan 26 and 34 (D0, D1, GND)
17. Audio interface: built-in speaker, voice broadcast
18. Equipment power supply: DC 12V/1.5A
19. Working environment: Indoor environment, temperature: -20 ℃~55 ℃, humidity: 10~90% RH
20. Installation method: Standard wall mounted bracket
21. Equipment size: 166 (L) * 86 (W) * 24.3 (H) mm (excluding bracket)
