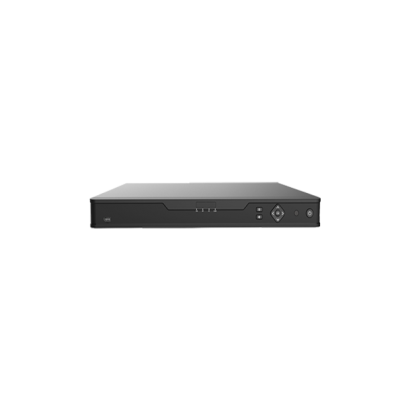

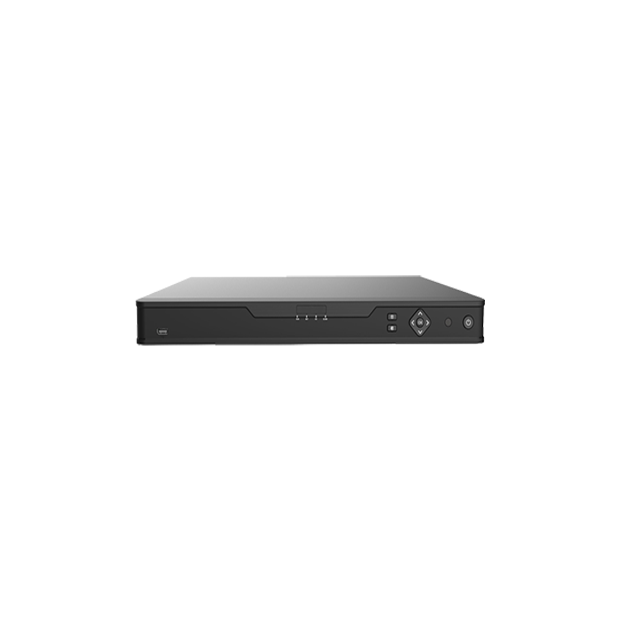

JV-T1104NU16 Video Recorder

The JV-T1104N16 video recorder is a cost-effective NVR that integrates multiple technologies such as audio and video decoding, data transmission, and storage. It is suitable for various indoor application environments and can be directly connected to IPC for independent networking and local preview. It can also be remotely controlled for access and viewing.

Product Features
1、Can connect third-party cameras that comply with ONVIF and RTSP protocols
2、Support U-Code intelligent coding technology; Supports H.265 and H.264 encoding
3、Audio decoding: G.711
4、1 audio output
5、Support video recording, editing, and backup
6、Instant replay, regular replay, event replay, tag replay, smart replay, image replay, external file replay
7、Each interface supports 500GB/1TB/2TB/3TB/4TB/5TB/6TB/8TB and other capacity hard drives
8、Working temperature: -10 ℃~+55 ℃
9、Working humidity: 10%~90% (without condensation)
Specification parameters
1、Video decoding：Support H.265 H.264
2、Decoding ability: 3x12MP@25 , 4x4K@30 , 9x 4MP@25 , 16x1080p@30 , 32x 960P@25
3、Network video input：32-ch
4、Network video access bandwidth：160Mbps
5、Preview split screen: 1/4/6/8/9/16 screen
6、Recording resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P
7、Synchronous replay: 16-ch
8、Backup modes: regular backup, image backup, video clip backup
9、Hard drive interface: 4 SATA interfaces
10、Ethernet: 2, RJ45 10M/100M/1000M Ethernet
11、USB： 2 USB 2.0, 1 USB 3.0
12、1 RS-485 communication interface
13、Alarm input interface: 16-ch
14、Alarm output interface: 4 channels
15、Power supply: DC 12V
16、Power consumption (excluding hard drive): ≤ 7W
17、Working temperature/humidity: -10 ℃~+55 ℃/10%~90% (without condensation)
18、Size：44mm×315mm×380mm
