Mini Computer
JC-T7007U-H1Mini Computer
JC-T7007U-H1Mini Computer

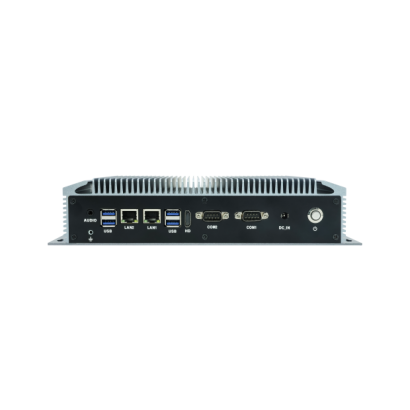

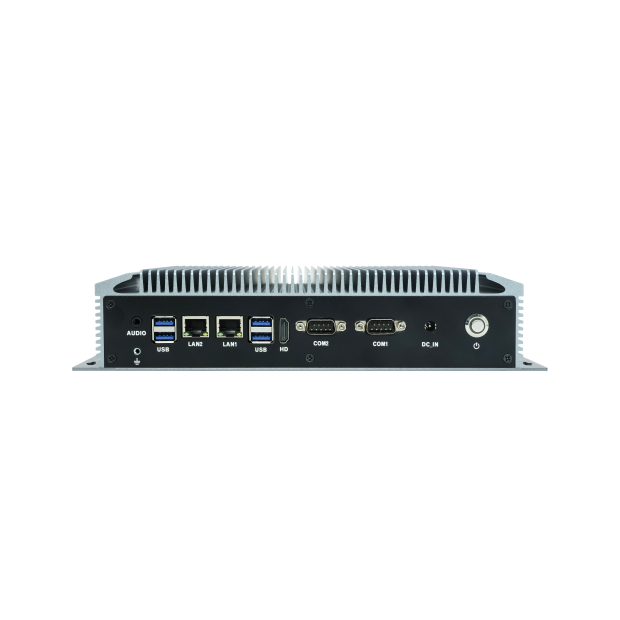

JC-T7007U-H1 mini computer, closed design, fin-type heat dissipation, dustproof, shockproof and anti-interference, fearless of various harsh industrial environments
DETAIL
1. Industrial-grade strong core motherboard, excellent performance, can be equipped with Intel I3/I5/I7 series
2. Fully enclosed, dustproof, corrosion-proof and vibration-proof to meet industrial production needs
3. Multiple serial port expansion, support VGA+HDMI dual screen display
4. Equipped with high-performance processor, multi-task collaborative processing
5. High-efficiency solid-state hard drive running at high speed
6. The size is 255*165*56mm, small and precise welding, flexible deployment
7. Ultra-low power consumption and ultra-long life
Product Specifications
1. CPU: Intel® Core™ i5 7300U, 2.3GHz, dual core, four threads
2. Memory: Standard configuration 8G (optional 16G and above memory)
3. Hard disk: Standard configuration 128G SSD (optional 256G and above SSD)
4. Graphics card: Intel HD Graphics 620
5. Sound card: Realtek ALC897
6. I/O interface: ON/OFF*1 interface USB3.0*4 interfaces USB2.0*4 interfaces VGA*1 interface HDMI*1 interface DC IN*1 interface COM*6 interfaces Audio*1 interface LAN*2 interfaces
7. Working voltage: DC 12V
8. Operating system: Windows 10, Linux, etc. (optional)
9. Material: Aluminum alloy
10. Working temperature/working humidity: 0℃~50℃/30%~98% RH
11. Size: 255*165*56mm
