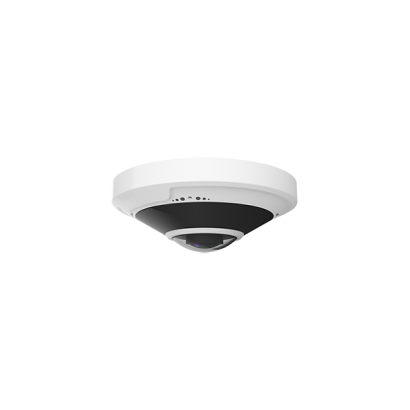

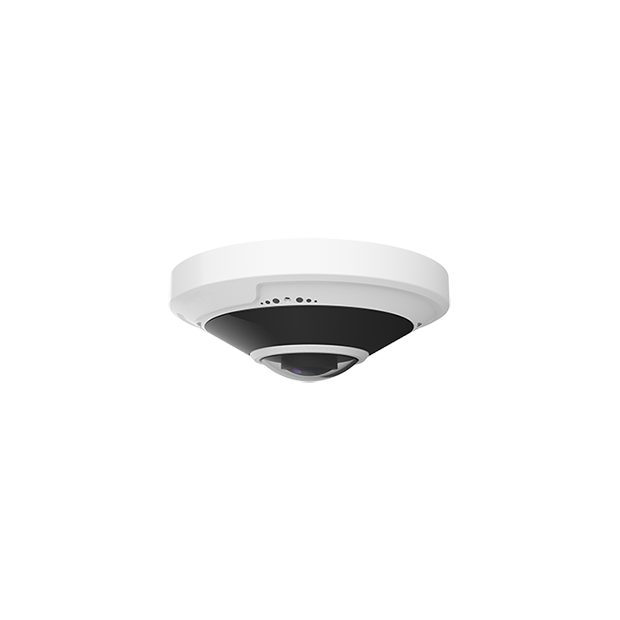

JV-TF5003N-E50F Fisheye Network Camera
JV-TF5003N-E50F Fisheye Network Camera
Fisheye network cameras are widely used in airports, shopping malls, banks, hotels and other scenes.
DETAIL
1. 5 million high-quality resolution, clearer picture
2. 360° ultra-wide-angle lens for panoramic shooting
3. Built-in high-quality omnidirectional dual microphones, clear sound quality
4. Advanced H.265 encoding algorithm, higher compression efficiency
5. AAC-LC broadband audio encoding, high-definition and clear sound quality
6. Embedded intelligent algorithm to achieve behavior detection, anomaly detection, and heat map
7. Support timing, interval, event capture, and upload to FTP
8. Customized OSD, providing customized effects of various content styles
9. Realize mutual backup of DC12V and PoE power supply
10. Support 10/100M Ethernet interface
Product Specifications
1. Image sensor: 1/3" 3 million pixel CMOS (or equivalent functional specification parts)
2. Lens: 4mm
3. Signal-to-noise ratio: ≥50dB
4. Minimum illumination: Color mode: 0.01Lux Black and white mode: 0.001Lux
5. Color/black conversion: automatic, manual, timed control
6. Wide dynamic range: support
7. White balance: Automatic
8. 3D noise reduction: support
9. Image compression standard: H.264/H.265
10. Image resolution: Main stream: 25FPS@(2304×1296, 1920×1080, 1280×720); Sub stream: D1, VGA, 640×360;
11. Output bit rate: Support bit rate 0.1M~3Mbps adjustable; support frame rate 1~25 frames/second adjustable
12. Audio: G.711 coding standard, linear input and output, support two-way voice intercom (optional)
13. Motion detection: support
14. Anti-face overexposure: Support
15. Ethernet port: 1 RJ45 10/100M Ethernet port
16. Protocol: Support HTTP/RTSP/DHCP/NTP/ONVIF and other network protocols
17. Power supply: DC12V/POE
18. Power: 6W Max
19. Working temperature: -10℃~50℃
20. Working humidity: 0%~90% RH (no condensation)
