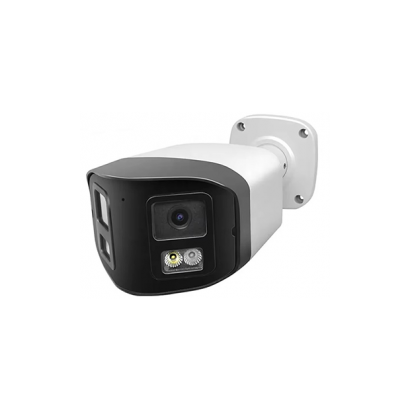

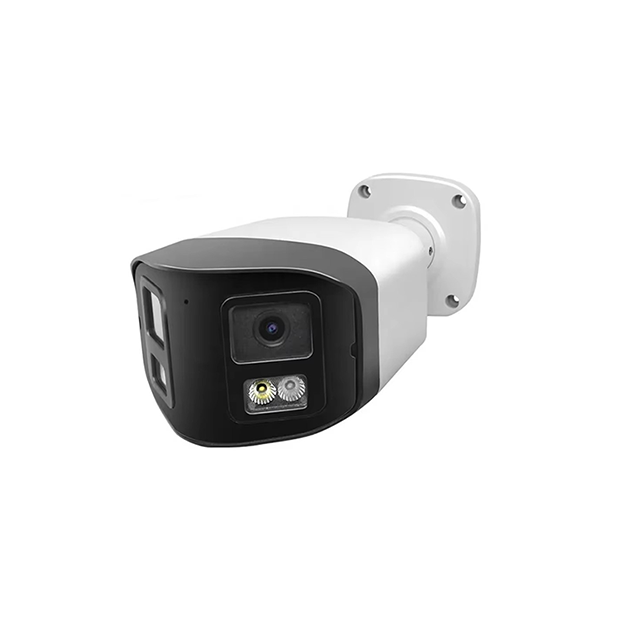

JV-TG8005N-D80F Network Camera
JV-TG8005N-D80F Network Camera
The JV-TG8005N-D80F network camera, with 8 megapixels, provides clear images both day and night to meet the needs of most applications.
DETAIL
1. 1/2.7" 8MP CMOS sensor
2. High-quality imaging with 8 MP resolution
3. One image presents all scenes covered by the camera
4. Efficient H.265+ compression technology
5. Using 120 dB WDR technology, clear imaging can be achieved even under strong backlight conditions
6. Intelligent dual lights with 3 lighting modes
7. All-weather color imaging
8. Support audio access
9. Support 10/100M Ethernet interface
10. Waterproof and dustproof (IP67)
Product Specifications
1. Image sensor: 1/2.7" 8-megapixel CMOS (or equivalent functional specification parts)
2. Lens: 2.8+2.8mm fixed focus lens 170°
3. Minimum illumination: Color mode: 0.01Lux Black and white mode: 0.001Lux
4. Image resolution: Main stream: 8MP 4096*1944@20fps; Sub stream: 20@fps (1024x480, 768x360)
5. Wide dynamic range: support
6. White balance: Automatic
7. 3D noise reduction: support
8. Image compression standard: H.265
9. Motion detection: support
10. Network interface: 1 RJ45 10/100M auto-detection Ethernet interface
11. Protocol: Support RTSP, DHCP, TCP/TP and other network protocols
12. Power supply: DC12V /POE
13. Working temperature: -10℃ ~50℃
