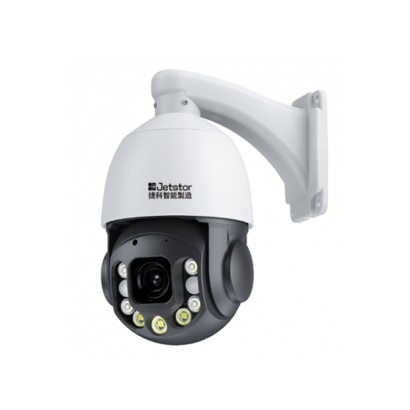

JV-TOSD-P0504x20 5MP High Speed Dome
JV-TOSD-P0504x20 5MP High Speed Dome
The high-speed ball is an intelligent camera front end. Its full name is intelligent high-speed ball camera, or high-speed ball for short. High-speed ball is the most complex and best-performing camera front end of the surveillance system. It is widely used for its 360° all-round monitoring and other functions. It is suitable for roads, campuses, airports, stations and other places.
DETAIL
1. 1/2.8" 5MP CMOS sensor
2. Support 18x optical zoom
3. Support automatic white balance, high color reproduction and realistic images
4. Support H.265 and H.264 encoding
5. Support variable bitrate. While setting the image quality, you can also limit the compression bitrate of the image.
6. Support code stream 0.1M~6Mbps adjustable; support frame rate 1~25fps adjustable
7. Support cruise function
8. Support audio access (optional)
9. Support 10/100M Ethernet interface
Product Specifications
1. Image sensor: 1/2.8" 5-megapixel CMOS (or equivalent functional specification parts)
2. Lens: Electric zoom 4.7-94mm
3. Optical zoom: 18 times
4. Rotation range of ball camera: Horizontal: 360° Vertical: 93°
5. Horizontal rotation speed: 0-120°/s
6. Vertical rotation speed: 0-60°/s
7. Automatic flip function: support
8. Scanning position of two points AB: arbitrarily set
9. Scanning speed of two points AB: 1-9 levels of speed can be set
10. White balance: automatic
11. 2D/3D noise reduction: support
12. Image compression standard: H.264/H.265
13. Image resolution: Main stream: 25FPS@(2592×1944, 2560×1440, 2304×1296, 1920×1080, 1280×720, 1944×1944, 1200×1200); Sub stream: D1, VGA, 640×360;
14. Output code stream: Image code stream 0.1Mbps-6Mbps continuously adjustable, support frame rate 1~25 frames/second adjustable
15. Audio: G.711 coding standard, support two-way voice intercom, support audio and video synchronization (optional)
16. Motion detection: support
17. Anti-face overexposure: Support
18. Defog function: support
19. Network interface: 1 RJ45 10/100M adaptive Ethernet interface
20. Protocol: Support HTTP/RTSP/DHCP/NTP/ONVIF and other network protocols
21. Power supply: DC12V/POE
22. Working temperature: -10℃ ~50℃
23. Working humidity: 0%~90% RH (no condensation)
