Network Camera

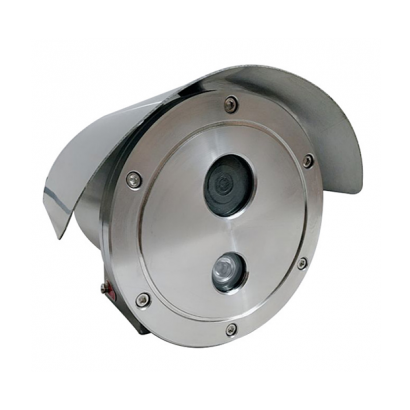

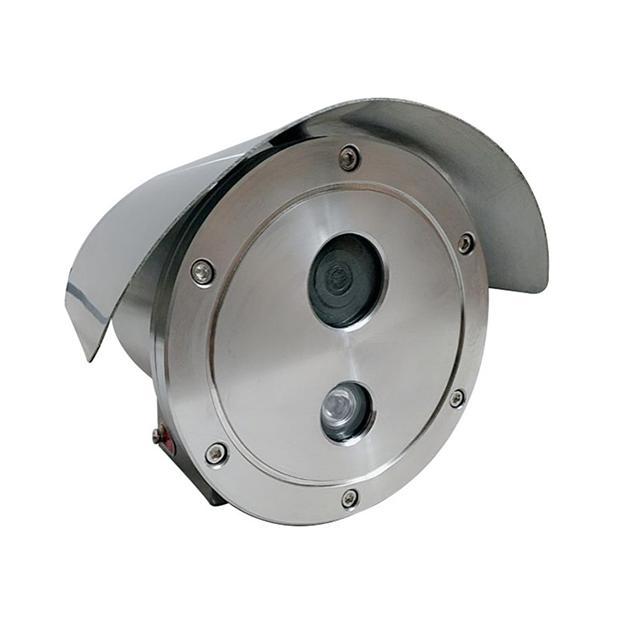

JV-TE4005L-P40Z Explosion-proof Barrel Camera
JV-TE4005L-P40Z Explosion-proof Barrel Camera
JV-TE4005L-P40Z explosion-proof tube camera, explosion-proof level: IIC level, with 4 million pixels, using H.264/H.265 image compression standard. Suitable for explosion-proof scenarios.
DETAIL
1. 1/1.8" 4-megapixel CMOS sensor
2. Support anti-face overexposure and defog function
3. Support automatic white balance, high color reproduction and realistic images
4. Support H.265 and H.264 encoding
5. Support variable bitrate. While setting the image quality, you can also limit the image compression bitrate.
6. Support code stream 0.1M~4Mbps adjustable; support frame rate 1~30fps adjustable
7. Alarm pre-recording function
8. Support audio access (optional)
9. Support 10/100M Ethernet interface
Product Specifications
1. Image sensor: 1/1.8" 4-megapixel CMOS (or equivalent functional specification parts)
2. Lens: Electric zoom 3.6~11mm
3. Signal-to-noise ratio: ≥50dB
4. Minimum illumination: Color mode: 0.01Lux Black and white mode: 0.001Lux
5. Color/black conversion: automatic, manual, timed control
6. Wide dynamic range: support
7. White balance: Automatic
8. 3D noise reduction: support
9. Image compression standard: H.264/H.265
10. Image resolution: Main stream: 30FPS@(2880×1620, 2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720); Sub stream: D1, VGA, 640×360;
11. Output code stream: Image code stream 0.1Mbps-4Mbps continuously adjustable, support frame rate 1~30 frames/second adjustable
12. Audio: G.711 coding standard, support two-way voice intercom, support audio and video synchronization (optional)
13. Motion detection: support
14. Anti-face overexposure: Support
15. Defog function: support
16. Network interface: 1 RJ45 10/100M auto-detection Ethernet interface
17. Protocol: Support HTTP/RTSP/DHCP/NTP/ONVIF and other network protocols
18. Power supply: DC12V /POE
19. Power: 6W Max
20. Working temperature: -10℃ ~50℃
21. Explosion-proof grade: IIC
