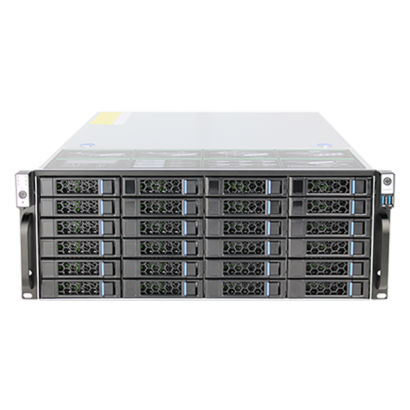

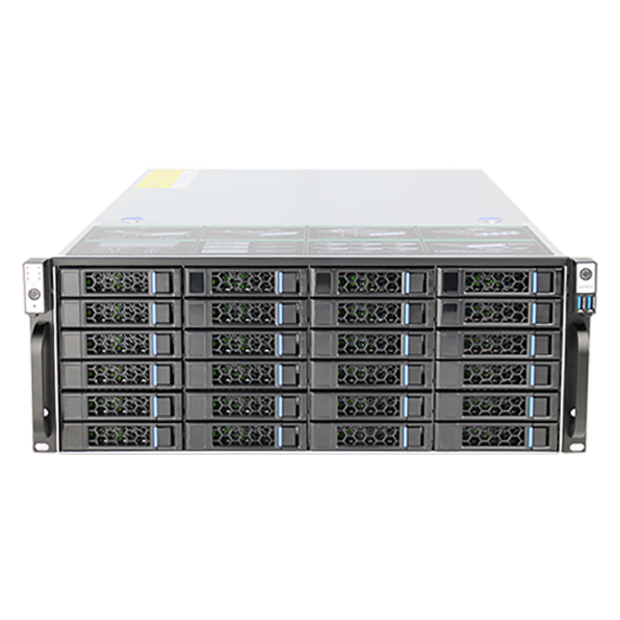

JS-TS4224-H1 Server
JS-TS4224-H1 Server
The server is suitable for high-density deployment of loads such as cloud computing, virtualization, high-performance computing (HPC), and big data processing, improving data center space utilization.
DETAIL
1. Standard configuration supports 24 3.5" (or 2.5") hot-swappable hard drive bays, 2 2.5" internal hard drive bays, and 2 2.5" rear hard drive bays
2. Standard configuration: 3 fans
3. Provide high-quality server infrastructure
4. Stable platform design to minimize deployment costs;
5. 24/7 data availability to protect customer critical data;
6. Efficient power management ensures the system's operational capabilities;
7. Powerful scalability, supporting flexible configuration of processor and memory storage
8. Support hot-swappable hard disk for quick replacement
Product Specifications
1. 4U rack-mount; 24-disk hot-swappable chassis
2. Support dual CPU, standard configuration: 1 Intel Xeon Silver 4210, 10 cores and 20 threads, 2.2GHz
3. Standard 16GB memory
4. 120G SSD
5. Supports the features of storage devices at RAID levels 0, 1, 3, 5, 6, 10, 50, etc.
6. Output 1 VGA display interface
7. 2 1000M Ethernet ports
8. 550W redundant power supply
9. 650mm(D)x437.5mm(W)×132mm(H)
