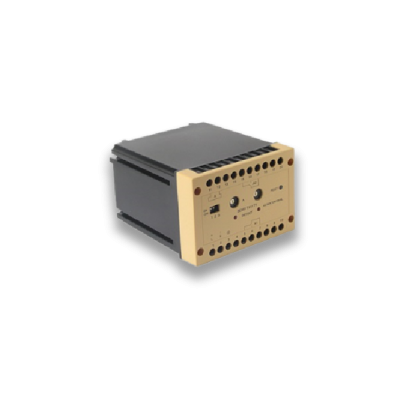

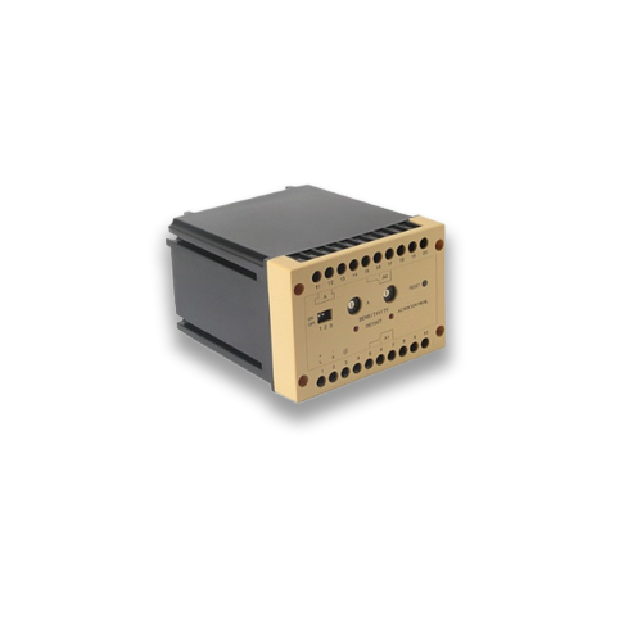

Vehicle Detector
Vehicle Detector
Used in parking lot gate systems to detect vehicles, automatically drop the gate when a vehicle passes by, and use ground sensors to prevent vehicles from being hit.
DETAIL
2. Nine levels of sensitivity adjustable;
3. The coil operating frequency is adjustable;
4.A2 relay output delay 0~4.5 seconds, nine levels adjustable, optimized for high chassis vehicle detection;
5. Coil lightning protection (varistor, resettable fuse and TVS), 4000V AC;
6. Working voltage: AC 220/110V±10% 50HZ optional, see the body label for details; Rated power: <5W;
7. Working temperature: -25℃~65℃;
8. Working humidity: ≤95% (no condensation);
9. Working frequency: 20KHz~170KHz;
10. Response time: 10ms;
11. Dimensions (including base): 100×70×118mm (length×width×height)
