Network Camera

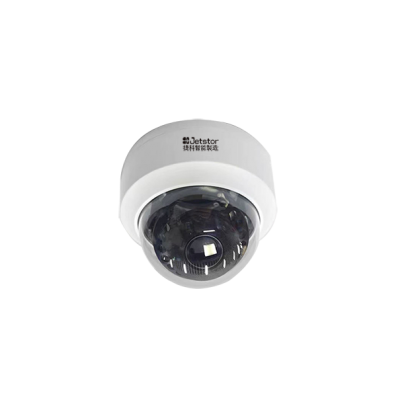

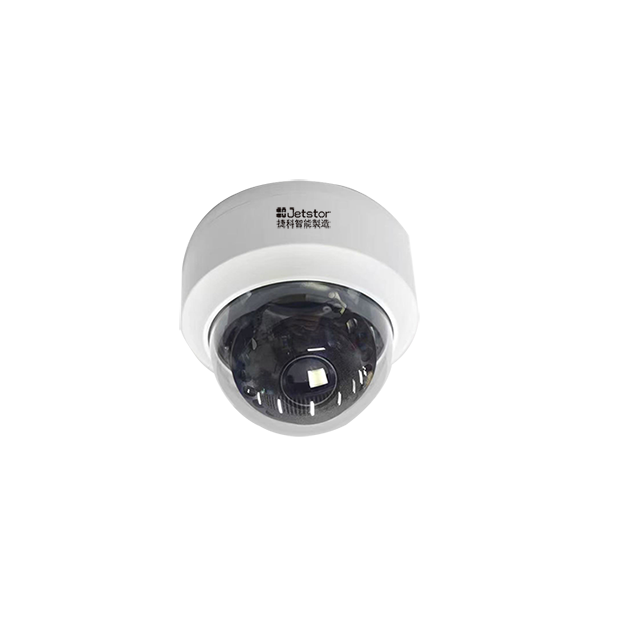

JV-TD3007N-W30F Workstation Monitoring Camera
JV-TD3007N-W30F Workstation Monitoring Camera
Workstation monitoring camera, with 3 million pixels, adopts H.264/H.265 image compression standard. Provides clear images day and night to meet the needs of most applications
DETAIL
1. 1/3" 3MP CMOS sensor
2. Support anti-face overexposure and defog function
3. Support automatic white balance, high color reproduction and realistic images
4. Support H.265 and H.264 video encoding
5. Support variable bitrate. While setting the image quality, you can also limit the compression bitrate of the image.
6. Support adjustable bit rate from 0.1M to 2Mbps;
7. Support (256GB) Micro SD card (optional)
8. Support 10/100M Ethernet interface
Specification parameters
1. Image sensor: 1/3" 3 million pixel CMOS (or equivalent functional specification parts)
2. Fixed focus lens: 4mm, 6mm, 8mm (lens optional)
3. Signal-to-noise ratio: ≥50dB
4. Minimum illumination: Color mode: 0.01Lux Black and white mode: 0.001Lux
5. Color/black conversion: automatic, manual, timed control
6. Wide dynamic range: support
7. White balance: Automatic
8. 3D noise reduction: support
9.Video compression standard: H.264/H.265
10. Video resolution: Main stream: 2304×1296, 1920×1080, 1280×720; Sub stream: 640×360;
11. Output bit rate: support bit rate 0.1M~2Mbps adjustable;
12. Audio: G.711 coding standard, support two-way voice intercom, support audio and video synchronization; (optional)
13. Motion detection: support
14. Anti-overexposure of faces: Supported
15. Defog function: support
16. Ethernet port: 1 RJ45 10/100M Ethernet port
17. Protocol: Support TCP/TP, IPv4, DHCP, RTSP, P2P and other network protocols
18. Power supply: DC12V
19. Working temperature: -10℃~50℃
20. Working humidity: 0%~90% RH (no condensation)
