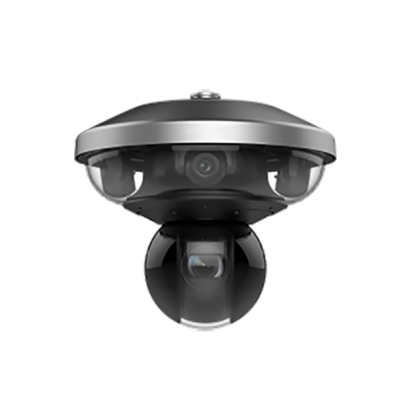

JV-TP4001L-H40D 360° Panoramic Camera
JV-TP4001L-H40D 360° Panoramic Camera
JV-TP4001L-H40D 360° panoramic camera, with 4 million pixels, one camera is equipped with 4 adjustable lenses, with a field of view of up to 360°, ensuring no blind spot monitoring, and the monitoring tilt angle is adjustable
DETAIL
1. [Panoramic channel] 1/1.8" progressive scan CMOS, [PTZ channel] 1/1.9" progressive scan CMOS
2. Captures a large area and great details at the same time
3. 24/7 colorful imaging and excellent low-light performance
4. Motorized pan, tilt and rotation in 4 panoramic lenses for flexible adjustment
5. Clear imaging against strong back light due to 120 dB(panorama) and 150 dB(PTZ) WDR technology
6. Ensure wide areas with 36x optical zoom and 16x digital zoom
Specification parameters
1、Image Sensor:[Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
2、Max. Resolution:[Panoramic channel] 2688 × 1520, [PTZ channel] 2688 × 1520
3、Focal Length:[Panoramic channel] 2.8 mm, [PTZ channel] 6-216 mm
4、Min. Illumination:Color: 0.0005 Lux @ (F1.0, AGC ON),[PTZ channel] Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR
5、Shutter Speed:1/30 s to 1/30000 s
6、Zoom:36 × optical,16 × digital
7、Movement Range (Pan):[PTZ channel] 0° to 360°,[Panoramic channel] 0° to 175°
8、Movement Range (Tilt):[Panoramic channel] 9° to 65°, [PTZ channel] -20° to 90°
9、Pan Speed:Pan speed: configurable from 0.1° to 700°/s, preset speed: 550°/s
10、Movement Range (Rotate)：[Panoramic channel] -90° to 90°
11、Tilt Speed：Tilt speed: configurable from 0.1° to 300°/s, preset speed 300°/s
12、Proportional Pan：[Panoramic channel] No, [PTZ channel] Yes
13、Presets：300
14、Patrol Scan：8 patrols, up to 32 presets for each patrol
15、Pattern Scan：4 pattern scans, record time over 10 minutes for each scan
16、Sub-Stream：50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
17、Main Stream：[PTZ channel] Channel 1: 50 Hz: 50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)
[Panoramic channel] Channel 2,3,4,5: 50 Hz: 50 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960) 60 Hz: 60 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960)
18、Third Stream：50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
19、Video Compression：Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264/MJPEG
20、Video Bit Rate：32 Kbps to 16 Mbps
21、Protocols：IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
22、Day/Night Switch：Day,night,auto,schedule
23、Wide Dynamic Range (WDR)：120 dB
24、SNR：≥ 52 dB
25、Ethernet Interface：1 RJ45 100M self-adaptive Ethernet port
26、Power：36 VDC ± 20%%, max. 105 W,including max. 12 W for IR,PoE(802.3bt) 42.5-57V| 2.12A
27、Operating Condition：-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 122°F)
