Video Recorder

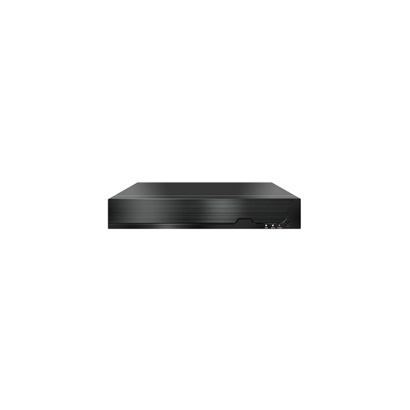

JV-T2501NP8 Video recorder
JV-T2501NP8 Video recorder
JV-T2501NP8 Video recorder integrates multiple technologies such as data transmission and storage, making it suitable for various application environments. The device has rich interfaces and can easily meet the needs of small and medium-sized monitoring networks.
DETAIL
1、Supports 1 SATA interfaces
2、Can connect third-party cameras that comply with ONVIF and RTSP protocols
3、Support mixed access of H.265 and H.264 devices
4、Support querying and backing up information such as logs, videos, etc
5、Support G.711U and G.711A audio compression to achieve real-time monitoring of video recording
6、Supports up to 8MP pixel high-definition network video preview, storage, and playback
7、Support pedestrian, cross-border detection, and motion detection
Specification parameters
1、Video decoding format：SupportH.265、H.264
2、Number of IPC access channels：8-ch (with built-in 8-port Poe switch)
3、Access bandwidth：64M
4、Output port description：Supports simultaneous output of video signals via VGA and HDMI interfaces (same source), with VGA up to 1080P output; HDMI up to 4K output
5、HDMI output：1-ch, resolution: 3840x2160, 2560x1440, 1920X1080, 1440X900, 1280x1024, 1280x720, 1024x768
6、VGA output：1-ch, resolution: 1920x1080, 1440x900, 1280X1024, 1280X720, 1024x768
7、Audio output：2-ch, HDMI/AUX interface (3.5mm)
8、Video resolution：8-ch 8MP, 12-ch 5MP/4MP/3MP/1080P/720P
9、Backup mode：Regular backup, video clip backup
10、Drawer:1 SATA interface
11、Hard disk capacity:Supports a maximum of 8TB hard drive
12、Audio:1 HDMI AUX(3.5mm)
13、Network interface:1 RJ45 10M/100M adaptive Ethernet
14、USB interface:2 USB2.0
15、Network protocol：Supports network protocols such as TCP/IP, IPV4, DHCP, NTP, RTSP, ONVIF, P2P, etc
16、Power supply：DC52V 2A(external adapter)
17、Working temperature/humidity：-10℃~+55℃/10%~90%
18、Size：255*195*42mm
