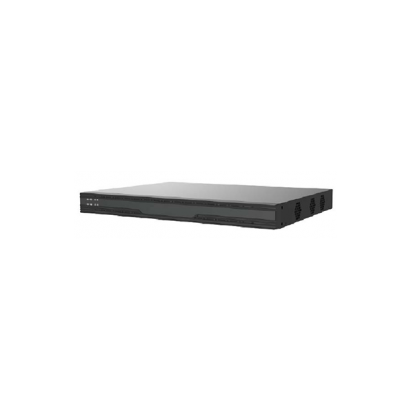

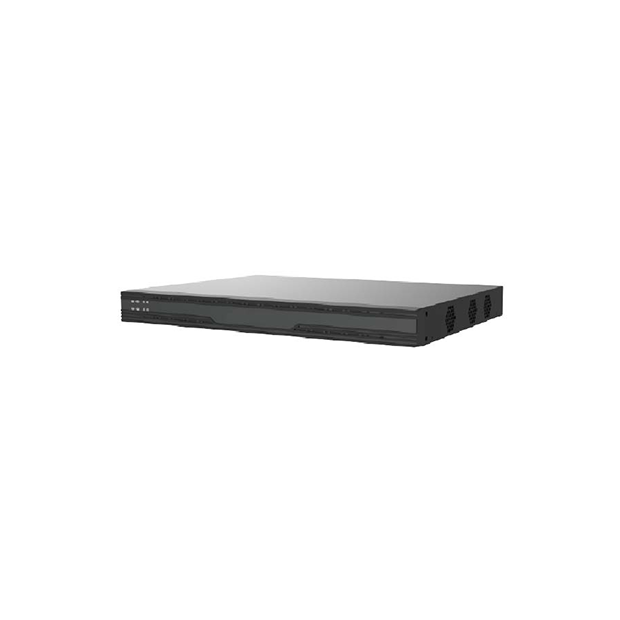

JV-T2003-HD4 decoder
JV-T2003-HD4 decoder
JV-T2003-HD4 decoder is a new generation of hardware and software integrated product designed and developed for small and medium-sized TV wall application environments. It is a compatible decoding component in the overall solution of the video management system.
DETAIL
1、Equipped with 2 HDMI input ports, supporting PC video signal on the wall
2、Support splicing on the wall
3、Support decoding 16 channels 1080P@30Hz
4、Support H.265, H.264, MPEG4, MPEG2, MJPEG format decoding
5、Supports receiving central server to configure and manage equipment services
6、Supports the function of synchronizing the clock to the server at regular intervals
7、Supports WEB access and configuration
8、Supports local and remote upgrades
Specifications
1、Number of input channels：2 HDMI
2、Video input resolution：1920*1080（1080P）@60Hz、1920*1080（1080P）@50Hz、 1600*1200（UXGA）@60Hz、1440*900（WXGA）@60Hz、1280*1024 （SXGA）@60Hz、1280*720（720P）@60Hz、1280*720（720P） @50Hz、1024*768（XGA）@60Hz
3、Output channels：4-channel HDMI
4、Video output resolution：4K interface：3840*2160（4K）@60Hz、3840*2160（4K）@30Hz、 1920*1080（1080P）@60Hz、1600*1200（UXGA）@60Hz、1440x900 （WXGA+）@60Hz、1280*1024（SXGA）@60Hz、1280*720（720P） @60Hz、1024*768（XGA）@60Hz；
1080P interface:1920*1080（1080P）@60Hz、1600*1200（UXGA） @60Hz、1440x900（WXGA+）@60Hz、1280*1024（SXGA） @60Hz、1280*720（720P）@60Hz、1024*768（XGA）@60Hz
5、Decoding format：H.265、H.264、MPEG4、MPEG2、MJPEG
6、Decoding capability：4*800W@30Hz、16*1080P@30Hz、36*720P@30Hz、64*D1
7、Number of screen divisions：Support 1, 2, 3, 4, 6, 7, 9, 16 split screen
8、Splicing function：M*N (The total number does not exceed the maximum number of output ports)
9、Multiple TV walls：A single machine can build and manage 4 video walls with different configurations
10、Scene Management：Can save 8 scenes
11、Audio Input：1 3.5mm audio input (reserved)
12、Audio Output：1 3.5mm audio output, supports G.711A and G.711U audio formats
13、Serial Port：1 RJ45 RS232 serial port, 1 RJ45 RS485 port
14、Network Interface：1 RJ45 half-duplex/full-duplex Ethernet interface, supports 10M/100M/1000M Base-T adaptive
15、USB interface：1 USB3.0 port
16、Product size(W*H*D)(mm)：440*44*339
17、Power consumption of the whole machine (W)：20
18、Operating voltage：85～264V AC
19、Operating temperature：-10℃～55℃
20、Operating humidity：10%～90% (no condensation)
