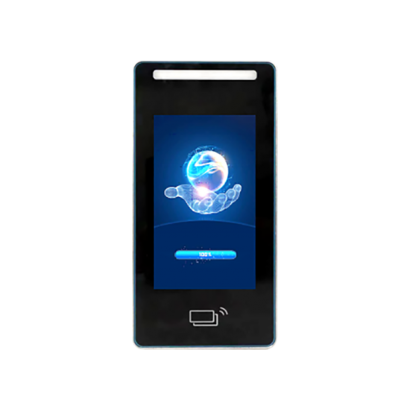

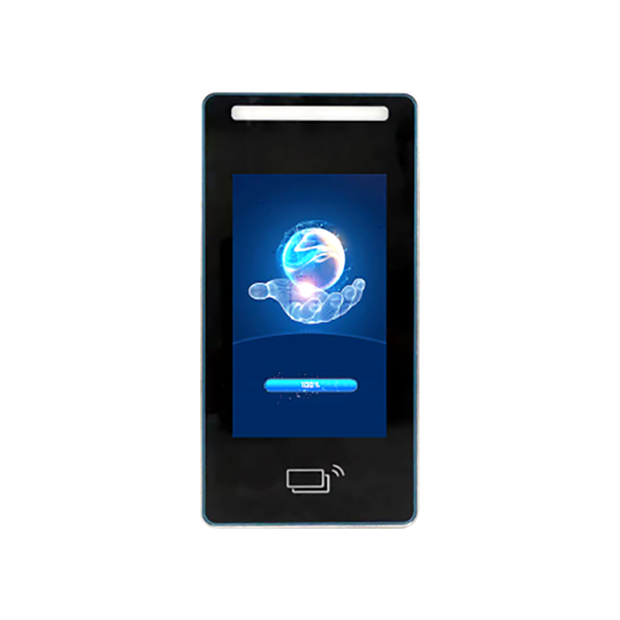

JV-TM1504A-CD05 Attendance and Access Card Swipe Machine
JV-TM1504A-CD05 Attendance and Access Card Swipe Machine
JV-TM1504A-CD05 attendance access card reader, equipped with a 5-inch high-resolution TOUCH screen. Supports 10/100M networking and rich peripheral security interfaces to meet user access control needs, enabling personnel authentication, access management, and attendance management.
DETAIL
1. Adopting a 5-inch high-resolution screen with a resolution of 480 * 854
2. The device can be managed locally and supports querying, setting, and managing device parameters after logging in
3. Can set access control period and normal opening period
4. Both the device and the management webpage have set an exit button
5. Support batch import and export of personnel information from the platform
6. Can query and export attendance records
7. Having detailed operation log management
8. 20000 Mifare/EM card library, storing 200000 records
9. 1 10/100M Ethernet interface
Specification parameters
1. System: Android 11.0
2 CPU： 4-core ARM ® Cortex ™ A55 up to1.8GHz
3. Storage capacity: 2GB of RAM, 32GB of storage
4. Display screen: 5-inch, 170 ° IPS LCD screen, resolution 480 * 854
5. Touch screen: Supports
6. Ethernet: 10/100Mbps Ethernet network
7. Mifare/EM card: Supports
8. Data interface: USB 2.0*1
9. Relay:* one
10. Serial port: RS485*1
11. Wigan: 26bit/34bit protocol
12. Adapter: DC12V/1.5A power supply
13. Working temperature:- 10℃～50℃
14. Working humidity: 20% to 90% (in non condensing water droplet state)
