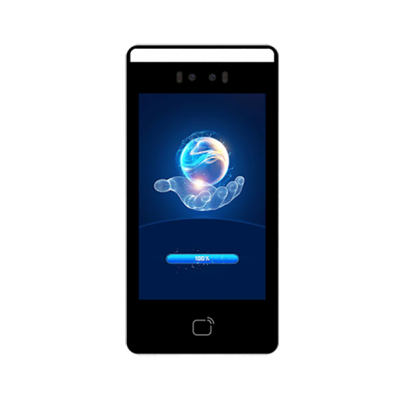

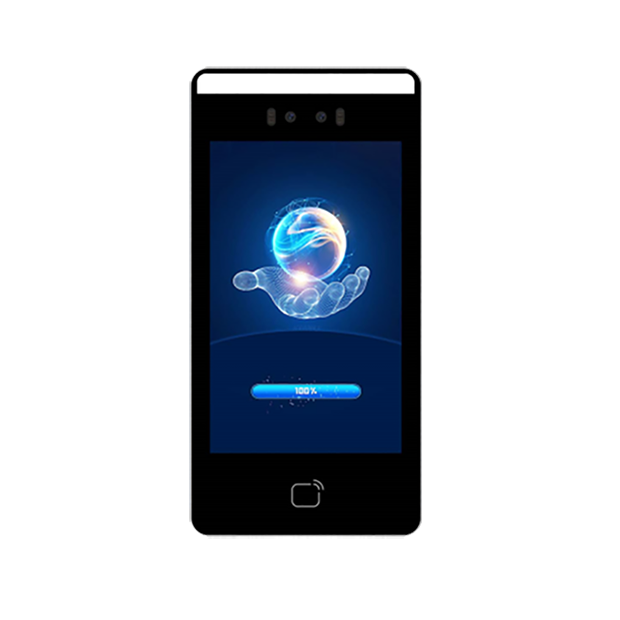

JV-TM1504A-FRCD08 Facial recognition attendance access control machine
JV-TM1504A-FRCD08 Facial recognition attendance access control machine
JV-TM1504A-FRCD08 Facial recognition attendance access control machine, supporting 10/100M networking mode and rich peripheral security interface, meets user access control needs, can achieve personnel identity verification, personnel entry and exit management, and attendance management. Suitable for explosion-proof demand scenarios.
DETAIL
1. Adopting an 8-inch high-resolution screen with a resolution of 800 * 1280
2. Dual lens, supports live anti-counterfeiting, solves the problem of photo fraud
3. The device supports multiple access control functions
4. Support stranger detection
5. Support face selection, face enhancement, and face exposure to improve imaging quality
6. The device can be managed locally and supports querying, setting, and managing device parameters after logging in
7. Support automatic screen sleep mode, automatic human body sensing, and quick activation of fill light
8. 1 10/100M Ethernet interface
Specification parameters
1. System: Android 11.0
2 CPU： 4-core ARM ® Cortex ™ A55 up to1.8GHz
3. Storage capacity: 2GB of RAM, 32GB of storage
4. Display screen: 8-inch, 170 ° IPS LCD screen, resolution 800 * 1280
5. Touch screen: Supports
6. Ethernet: 10/100Mbps Ethernet network
7. Facial recognition: Supports
8. Mifare/EM card: Supports
9. Data interface: USB 2.0*1
10. Relay:* one
11. Serial port: RS485*1
12. Wigan: 26bit/34bit protocol
13. Adapter: DC12V/2A power supply
14. Working temperature:- 10℃～50℃
15. Working humidity: 20% to 90% (in non condensing water droplet state)
