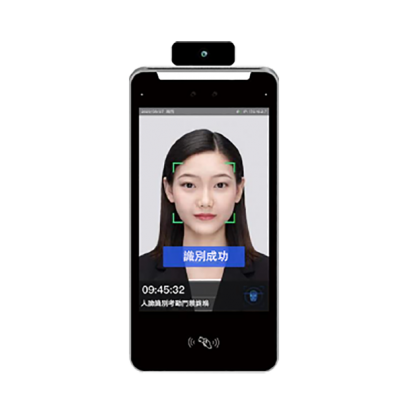

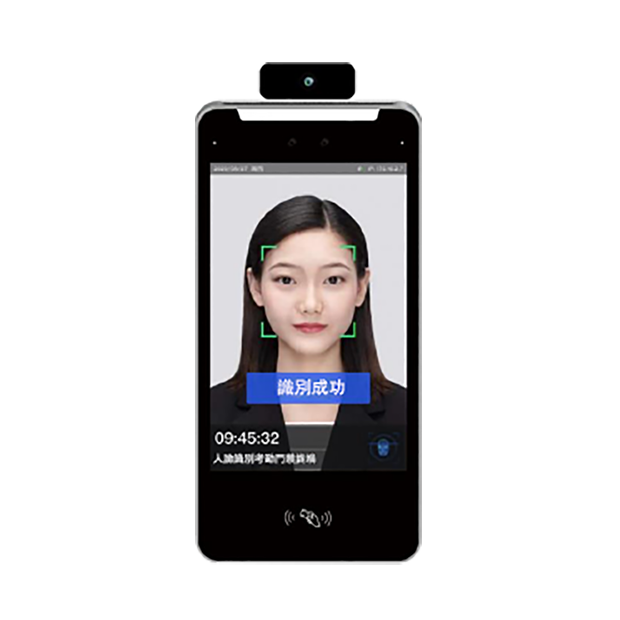

JV-TM1204-FT08H Facial recognition temperature measurement panel machine
JV-TM1204-FT08H Facial recognition temperature measurement panel machine
JV-TM1204-FT08H facial recognition temperature measurement panel machine, built-in infrared temperature measurement module, temperature measurement distance up to 50cm, temperature measurement error within 0.5 ℃, real-time facial recognition temperature measurement (can wear a mask), abnormal body temperature alarm prompt, can be applied to offices, subway stations, factories and other places for rapid temperature check.
DETAIL
1. Adopting a 2-megapixel high-resolution F2.2 aperture security grade industrial lens, resistant to backlighting
2. Adopting an 8-inch IPS screen with a resolution of 800 * 1280 and a screen brightness of 450cd/m2
3. Dual lens, supporting live anti-counterfeiting, solving the problem of photo fraud
4. The device supports multiple access control functions
5. Support stranger detection
6. Support digital wide dynamic and real wide dynamic
7. The device can store user data and supports standalone operation in offline mode
8. The device can be managed locally and supports querying, setting, and managing device parameters after login
9. Support automatic screen sleep mode, automatic human body sensing, and quick activation of fill light
10. 1 10/100M network adaptive, RJ45 interface
Specification parameters
1. Operating System: Embedded Linux System
2. Screen size: 8-inch IPS screen
3. Screen brightness: 450cd/m2
4. Screen resolution: 800 * 1280
5. Lens resolution: 2 million pixels (1920 × 1080)
6. Sensor: 1/2.7 inch low light CMOS sensor
7. Lens: High resolution fixed focus 4mm&aperture F2.2
8. White balance: automatic, low color temperature, high color temperature, manual
9. Wide Dynamic: Digital Wide Dynamic and Real Wide Dynamic
10. Fill light: RGB (natural light) and infrared light
11. Temperature measurement range: 30 ℃~45 ℃
12. Temperature measurement distance: 50cm
13. Temperature measurement accuracy: within 0.5 ℃
14. Detection angle: Vertical angle of view: 90 degrees, horizontal angle of view: 53 degrees
15. Facial database: Standard equipment includes 30000 facial databases, 30000 Mifare/EM card libraries, and 150000 record storage
16. Accurate recognition: recognition speed ≤ 0.2S/person, recognition accuracy greater than 99.97%
17. Recognition distance: adjustable from 0.3M to 2.0M
18. Parameter settings: blacklist and whitelist, recognition parameters, image settings, information display, etc
19. Live testing: support
20. Network interface: 1 10/100M network automatic detection, RJ45 interface
21. Audio interface: 1-channel audio output interface
22. Serial interface: 1 RS232 serial port RX TX
23. Wigan interface: 1-channel Wigan (D0, D1, GND) supports Wigan 26, 34
24. Power supply: DC12V ± 20%
25. Power consumption: ≤ 15W
26. Working environment: Indoor windless environment, temperature maintained at 10 ℃~35 ℃, humidity: 10~90% RH
27. Protection level: IP54 protection level, anti-static: contact ± 6KV, air ± 8KV
28. Installation method: Standard equipment includes wall mounted brackets and gate installation (optional)
29. Dimensions (mm): Length: 256mm, Width: 124mm, Thickness: 21mm (excluding bracket)
