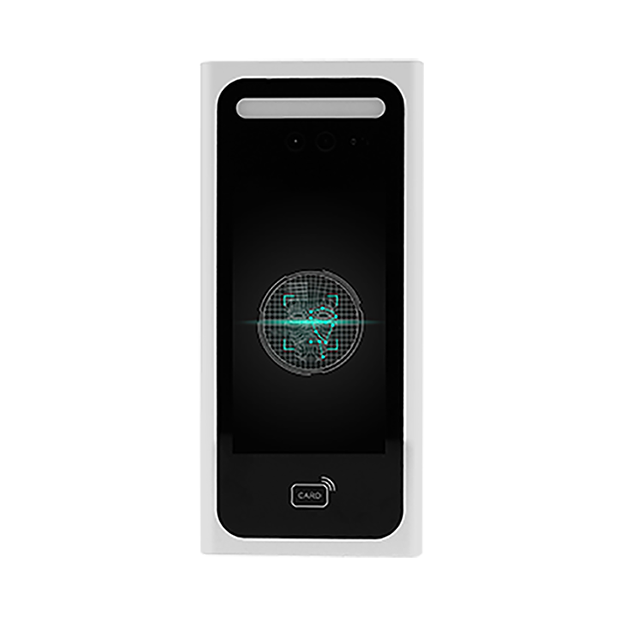

JV-TM1204-FCD07 Face recognition panel machine
JV-TM1204-FCD07 Face recognition panel machine
The JV-TM1204-FCD07 facial recognition panel machine is a high-performance, highly reliable facial recognition product. It uses a deep learning facial recognition algorithm to achieve fast recognition speed and higher accuracy. It can be used at the entrances and exits of offices, communities, factories, etc. to implement personnel attendance and access control.
DETAIL
1. Use 2 million high-resolution F2.2 aperture security-grade industrial lens, anti-backlight
2. Use 7-inch IPS screen, resolution 1024*600, screen brightness 450cd/m2
3. Dual lenses, support for live anti-counterfeiting, solve the problem of photo deception
4. The device supports multiple access control functions
5. Support stranger detection
6. Support digital wide dynamic range and real wide dynamic range
7. The device can store user data and support stand-alone operation in offline mode
8. The device can be managed locally, and supports querying, setting, and managing device parameters after logging in.
9. The outer glass is made of tempered glass, which has good light transmittance, high hardness and is not easy to deform.
10、1 10/100M network adaptive, RJ45 interface
Specifications
1、Operating system: Embedded Linux system
2、Display screen size: 7-inch IPS screen
3、Display screen brightness:450cd/m2
4、Display resolution: 1024×600
5、Lens resolution: 2 million pixels (1920×1080)
6、Sensor: 1/2.7-inch low-light CMOS sensor
7、Lens: High-resolution fixed focus 4mm & aperture F2.2
8、White balance: automatic, low color temperature, high color temperature, manual
9、Wide dynamic range: digital wide dynamic range and real wide dynamic range
10、Fill light: RGB (natural light) and infrared light
11、Detection angle: vertical viewing angle: 90 degrees, horizontal viewing angle: 53 degrees
12、Face database: Standard equipped with 30,000 face database and 30,000 IC/ID card database
13、Accurate identification: identification speed ≤ 0.2S/person, identification accuracy greater than 99.97%
14、Identification distance: 0.3M-2.0M adjustable
15、Parameter settings: blacklist and whitelist, recognition parameters, information display, etc.
16、Liveness detection: Support
17、Network interface: 1 10/100M network automatic detection, RJ45 interface
18、Audio interface: 1-channel audio output interface
19、Serial interface: 1 RS232 interface
20、Wiegand interface: 3 pins (D0, D1, GND) supporting Wiegand 26, 34
21、Power supply: DC12V±20%
22、Power consumption: ≤20W
23、Working environment: Temperature: -30℃～70℃ Humidity: 10～90%RH (optional heater for low temperature)
24、Protection level: IP67, IK07, anti-static: contact ±6KV, air ±8KV
25、Installation method: standard wall-mounted bracket, gate installation (optional), support 86 box installation (optional)
26、Dimensions (mm): Length: 277mm, Width: 126.9mm, Thickness: 26.6mm (excluding bracket)
