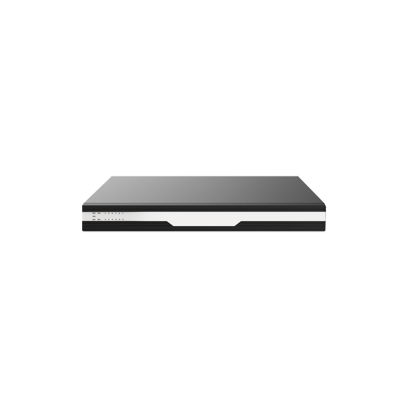

JV-T2003-HD6 decoder
JV-T2003-HD6 decoder
JV-T2003-HD6 Decoder, supporting 6 HDMI outputs, suitable for various occasions, is a practical and easy-to-use network wall device.
DETAIL
1. Adopting embedded Linux operating system, supporting 7 * 24-hour stable operation
2. 4-channel HDMI local input
3. The single port decoding capability can reach up to 16* 1080P@30Hz
4. Supports H.265, H.264, and MPEG4 image compression formats
5. Supports decoding audio formats G.711A and G.711U
6. The highest output image resolution can reach 4K@30Hz
7. Supports window opening, roaming, and picture in picture functions, with a maximum of 36 windows per single output channel
Product specifications
1、Input channels: 4 HDMI channels
2、Image input resolution:
4K interface: 3840 * 2160 (4K) @ 30Hz, 1920 * 1080 (1080P) @ 60Hz, 1920 * 1080 (1080P) @ 50Hz, 1920 * 1080 (1080P) @ 30Hz, 1600 * 1200 (UXGA) @ 60Hz, 1440 * 900 (WXGA) @ 60Hz, 1280 * 1024 (SXGA) @ 60Hz, 1280 * 720 (720P) @ 60Hz, 1280 * 720 (720P) @ 50Hz, 1024 * 768 (XGA) @ 60Hz (4K input ports: 1, 2);
1080P interface: 1920 * 1080 (1080P) @ 60Hz, 1920 * 1080 (1080P) @ 50Hz, 1920 * 1080 (1080P) @ 30Hz, 1600 * 1200 (UXGA) @ 60Hz, 1440 * 900 (WXGA) @ 60Hz, 1280 * 1024 (SXGA) @ 60Hz, 1280 * 720 (720P) @ 60Hz, 1280 * 720 (720P) @ 50Hz, 1024 * 768 (XGA) @ 60Hz (1080P input ports: 3, 4)
3、Output channels: 6 HDMI channels
4、Image output resolution: 4K interface: 3840 * 2160 (4K) @ 30Hz, 1920 * 1200 (WUXGA) @ 60Hz, 1920 * 1080 (1080P) @ 60Hz, 1600 * 1200 (UXGA) @ 60Hz, 1440 * 900 (WXGA+) @ 60Hz, 1280 * 1024 (SXGA) @ 60Hz, 1280 * 720 (720P) @ 60Hz, 1024 * 768 (XGA) @ 60Hz (4K output ports: 1, 2, 4, 5);
1080P interface: 1920 * 1200 (WUXGA) @ 60Hz, 1920 * 1080 (1080P) @ 60Hz, 1600 * 1200 (UXGA) @ 60Hz, 1440 * 900 (WXGA+) @ 60Hz, 1280 * 1024 (SXGA) @ 60Hz, 1280 * 720 (720P) @ 60Hz, 1024 * 768 (XGA) @ 60Hz (1080P output ports: 3, 6)
5、Decoding format: H.265、H.264、MPEG4
6、Decoding ability: 8* 1200W@20Hz 8* 4K@30Hz 32* 1080P@30Hz 72* 720P@30Hz
7、Splicing function: M * N (total number not exceeding the maximum number of output ports)
8、Multiple TV walls: A single machine can establish and manage 4 TV walls with different configurations
9、Audio input: 1 Phoenix terminal audio input (reserved) 1 3.5mm audio input (reserved)
10、Alarm input: 4-channel Phoenix terminal alarm input (reserved)
11、Alarm output: 4-channel Phoenix terminal alarm output (reserved)
12、Serial ports: 2 (1 RJ45 RS232, another RJ45 RS232 Console and RS485 shared)
13、Network interface: 2 GE network ports, RJ45 interface, half duplex/full duplex Ethernet, supporting 10M/100M/1000M Base-T adaptation
14、USB interface: 2 USB 3.0 interfaces
15、Product size (W * H * D) (mm): 440 * 44 * 339
16、Power consumption of the whole machine (W): 32
17、Working voltage: 100V~240V AC; 50Hz/60Hz
18、Working temperature: -10 ℃~55 ℃
19、Working humidity: 10% to 90% (without condensation)
