Gate machine

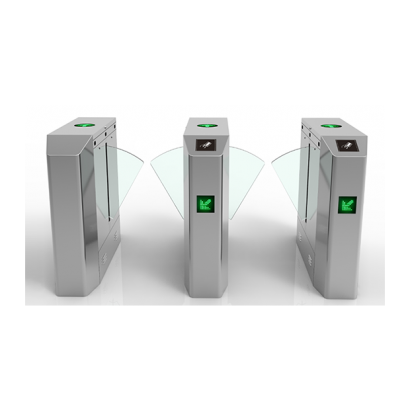

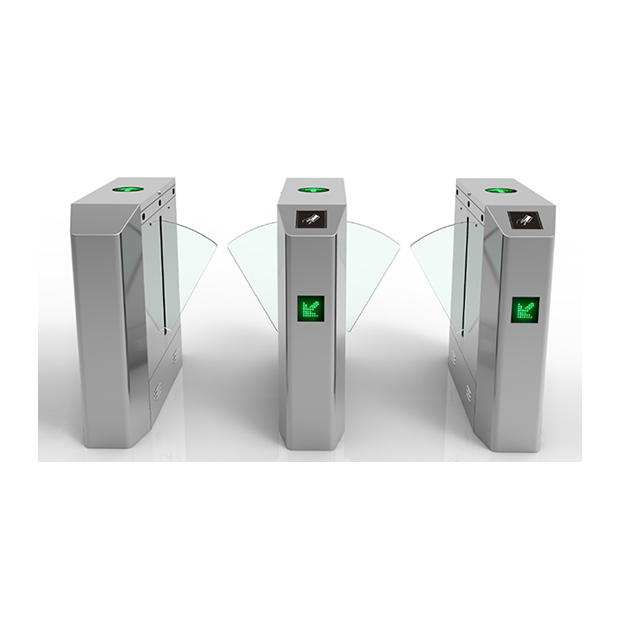

Angled wing gate
Angled wing gate
The wing gate has the characteristics of quick opening, safety and convenience. It is an ideal management and guidance device for high-frequency pedestrian access channels. Widely used in airports, subway stations, stations, docks, scenic spots, parks, student dormitories, etc
DETAIL
2. Working voltage: AC220 ± 10% V 50 ± 10% HZ
3. Dimensions: 1200 L * 280 W * 980 H (MM) Channel 550 (MM)
4. Traffic speed: 25 people per minute
5. Gate opening and closing time: 2 seconds
6. Each channel gate is equipped with 3 pairs of infrared sensors
7. Equipped with infrared anti pinch and current sensing anti pinch
8. Each unit independently uses Taiwan MEAN WELL switching power supply, which provides more stable power supply and longer lifespan
9. Can be connected to various card reading and facial recognition devices, and receive relay switch signals
10. External switch button can be connected to achieve one-way and two-way traffic through remote control
11. After swiping the card, pedestrians are only allowed to move in one direction; If passing in the opposite direction, an alarm will be triggered
12. When the door wing encounters an obstruction, the current anti pinch system will automatically detect and stop running. At this time, the motor will slow down and become disabled, without harming people or objects
13. When the swing arm is not opened, if forcibly entering, the swing arm will rotate a certain angle to buffer and immediately lock, playing a role in collision prevention
14. After obtaining permission, if the gate is not closed within the set time, the permission will be automatically cancelled and restored to the initial state
