Video Recorder

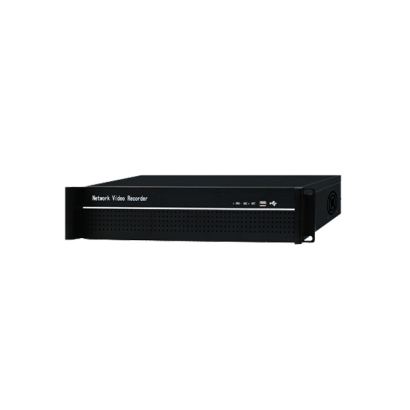

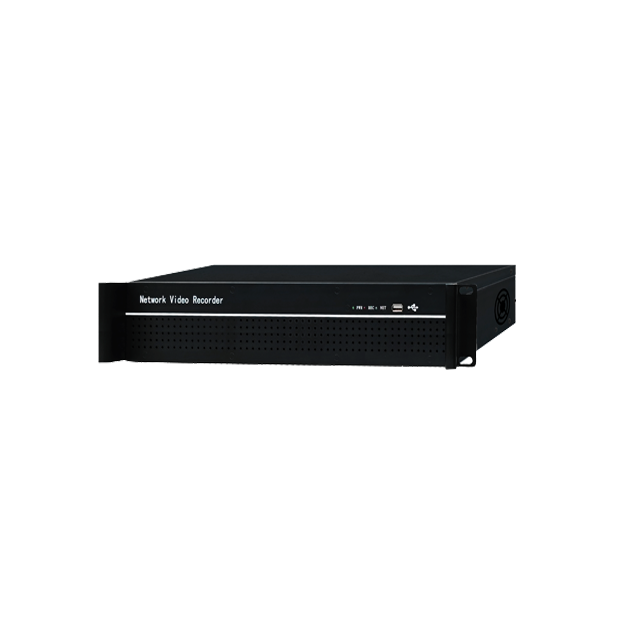

JV-T2508N64 Video Recorder
JV-T2508N64 Video Recorder
JV-T2508N64 Integrating multiple technologies such as data transmission and storage, suitable for various application environments, the device has rich interfaces and can easily meet the needs of small and medium-sized monitoring networks.
DETAIL
1、Dual gigabit network card, supporting applications such as dual network IP settings
2、Can connect third-party cameras that comply with ONVIF and RTSP protocols
3、Supports H.265 and H.264 decoding
4、Support preview, storage, and playback of 12MP high-resolution network images
5、Supports 2 HDMI, HDMI supports 4K, HDMI1 supports 1080P output, supports heterogeneous output
6、Each interface supports a maximum of 14TB hard drive
7、Support pedestrian, cross-border detection, and motion detection
Specification parameters
1、Image decoding format: Supports H.265 H.264
2、IPC接入路數：64路
3、Broadband access: 320MB
4、Output port description: Supports 2 HDMI ports, HDMI supports 4K, HDMI1 supports 1080P output, and supports heterogeneous output
5、HDMI output: 1 channel, resolution: 3840X2160, 2560X 1440, 1920X1080, 1440X900, 1280X1024, 1280X720, 1024X 768
6、HDMI 2 output: 1 channel, resolution: 1920X1080, 1440X900, 1280X1024, 1280X720, 1024X768
7、VGA output: 1 channel, resolution: 1920X1080, 1440X 900, 1280X1024, 1280X720, 1024X768
8、Audio output: 1 channel, HDMI/AUX interface (3.5mm)
9、Video resolution: 36 channels of 12MP, 64 channels of 8MP/5MP/4MP/3MP/1080P/720P
10、Synchronous playback: instant playback, regular playback, intelligent playback
11、Synchronous playback: 2-channel 12MP/4-channel 8MP/8-channel 4MP/16 channel 2MP
12、Backup modes: regular backup, video clip backup
13、Disk position: 8 disk positions
14、Hard disk capacity: A single interface can support up to 14TB of hard disk capacity
15、Audio: 1 HDMI output, 1 3.5mm audio input/output jack
16、Network interface: 2 RJ45 1000M/100M/10M automatic detection Ethernet
17、USB interface: 2 USB 2.0 ports
18、Network Protocol: Supports TCP/IP, IPV4, DHCP, NTP, RTSP, ONVIF, P2P and other network protocols
19、Working temperature/humidity: -10 ℃~+55 ℃/10%~90% (without condensation)
20、Power consumption (excluding hard drive): ≤ 95W (excluding hard drive)
21、Dimensions: 89mm (height) x 450mm (depth) x 440mm (width)
