JV-T1124NU128 Video Recorder
JV-T1124NU128 Video Recorder

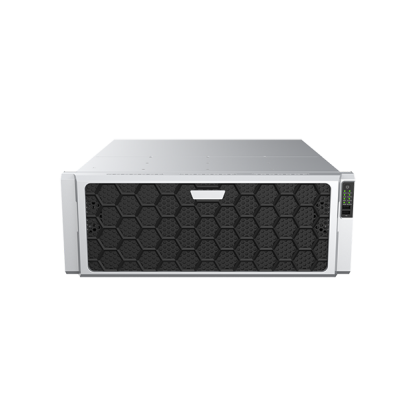

JV-T1124NU128 is a high bay NVR designed for the engineering industry, integrating multiple technologies such as high decoding and high storage. 4U chassis, high-density integration, supports inserting 4 expansion cards.
DETAIL
1、4 Gigabit Ethernet cards, supporting multiple network IP settings and other applications
2、Can connect third-party cameras that comply with ONVIF and RTSP protocols
3、Supports H.265 and H.264 encoding
4、Support preview, storage, and playback of 4K high-definition network images
5、Supports 2 HDMI, 1 VGA, HDMI 1, HDMI 2, VGA heterogeneous output, HDMI 1, HDMI 2 support 4K display output
6、Each interface supports 500GB/1TB/2TB/3TB/4TB/5TB/6TB/8TB/10TB/12TB/14TB/16TB and other capacity hard drives (maximum hard drive capacity is affected by ambient temperature)
7、Support locking and unlocking of important recordings, and support pre - and post police recording
Specification parameters
1、Image decoding format: H.265、H.264
2、Local human-machine decoding capability: 3x12MP@30 , 5x4K@30 , 20x1080P@30 , 24x1080P@25 , 40x960P@25 , 45x720P@30 , 54x720P@25 , 96xD1
3、Audio decoding format: G.711A、G.711U
4、Access bandwidth：768Mbps
5、Forwarding bandwidth：768Mbps
6、IPC access channels: 128-ch
7、Output port description: Supports 2 HDMI, 1 VGA, HDMI 1, HDMI 2, VGA heterologous output, HDMI 1, HDMI 2 support 4K display output
8、HDMI output port resolution: 2-channel HDMI resolution: 1024x768/60HZ, 1280x720/60HZ, 1280x1024/60HZ, 1600x1200/60HZ, 1920x1080/50HZ, 1920x1080/60HZ, 4K (3840x2160)/30HZ
9、VGA output port resolution: 1-channel VGA resolution: 1024x768/60HZ, 1280x720/60HZ, 1280x1024/60HZ, 1600x1200/60HZ, 1920x1080/50HZ, 1920x1080/60HZ
10、Live normal split screen: VGA: 1/4/6/8/9/16/25/36, HDMI 1 and HDMI 2: 1/4/6/8/9/16/25/36/64
11、Live corridor split screen: 3/4/5/7/9/10/12/16/32
12、Voice intercom: a pair of voice intercom interfaces (multiplexed with audio input/output interfaces)
13、Recording resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF
14、Number of human-machine synchronous playback channels: 16
15、Backup modes: video backup, image backup, playback clip backup
16、Disk position: 24 disk positions
17、Network ports: 4, RJ45 10M/100M/1000M Ethernet
18、USB： 2 USB 3.0 ports
19、Power input: AC100～240V
20、Working temperature: -10 ℃~+55 ℃
21、Working humidity: 10%~90% (no condensation)
22、Power consumption (excluding hard drive): ≤ 50W
23、Dimensions: 175.3mm (height) x 533mm (depth) x 484.6mm (width)
