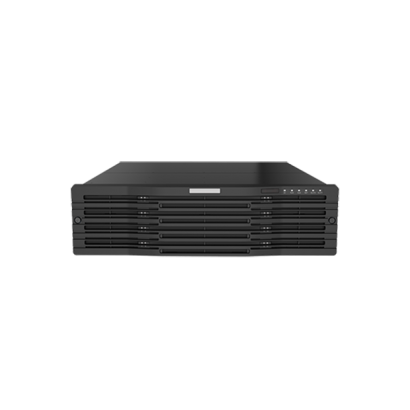

JV-T1116NU128 Video Recorder
JV-T1116NU128 Video Recorder
JV-T1116NU128 Integrating multiple technologies such as audio and image decoding, data transmission, and storage, it is suitable for various application environments. The equipment has rich interfaces and can easily meet the needs of various small and medium-sized monitoring networks.
DETAIL
1、4 Gigabit Ethernet cards, supporting multiple network IP settings and other applications
2、Can connect third-party cameras that comply with ONVIF and RTSP protocols
3、Supports H.265 and H.264 encoding
4、Support preview, storage, and playback of 4K high-definition network images
5、Supports 2 HDMI, 1 VGA, supports heterogeneous simultaneous output, HDMI supports 4K display output
6、Each interface supports 500GB/1TB/2TB/3TB/4TB/5TB/6TB/8TB/10TB/12TB/14TB/16TB and other capacity hard drives (maximum hard drive capacity is affected by environmental temperature)
7、Support locking and unlocking of important recordings, and support pre - and post police recording
Specification parameters
1、Image decoding format: H.265、H.264
2、Local human-machine decoding capability: 3x12MP@25 , 4x4K@25 , 16x1080P@30 , 32x960P@25 , 36x720P@30 , 64xD1
3、Audio decoding format: G.711A、G.711U
4、Access bandwidth:512Mbps
5、Forwarding bandwidth：384Mbps
6、Number of IPC access channels：128-CH
7、Output port description: Supports 2 HDMI, 1 VGA, supports heterogeneous simultaneous output, HDMI supports 4K display output
8、HDMI output port resolution: 2-channel HDMI resolution: 1024x768/60HZ, 1280x720/60HZ, 1280x1024/60HZ, 1600x1200/60HZ, 1920x1080/50HZ, 1920x1080/60HZ, 4K (3840x2160)/30HZ
9、VGA output port resolution: 1-channel VGA resolution: 1024x768/60HZ, 1280x720/60HZ, 1280x1024/60HZ, 1600x1200/60HZ, 1920x1080/50HZ, 1920x1080/60HZ
10、Live ordinary split screen: 1/4/6/8/9/16/25/36/64
11、Live corridor split screen: 3/4/5/7/9/10/12/16/32
12、Voice intercom: a pair of voice intercom interfaces (multiplexed with audio input/output interfaces)
13、Recording resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF
14、Number of human-machine synchronous playback channels: 16
15、Backup modes: video backup, image backup, playback clip backup
16、Disk position: 16 disk positions
17、Network ports: 4, RJ45 10M/100M/1000M Ethernet, 2 optical transmission interfaces
18、USB： 4 USB 3.0 ports
19、Power input: AC100～240V
20、Working temperature: -10 ℃~+55 ℃
21、Working humidity: 10%~90% (no condensation)
22、Power consumption (excluding hard drive): ≤ 50W
23、Dimensions: 131mm (height) x 477mm (depth) x 482mm (width)
