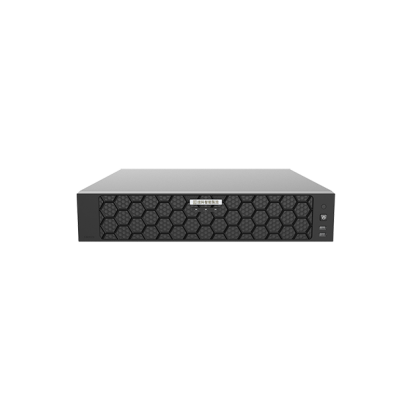

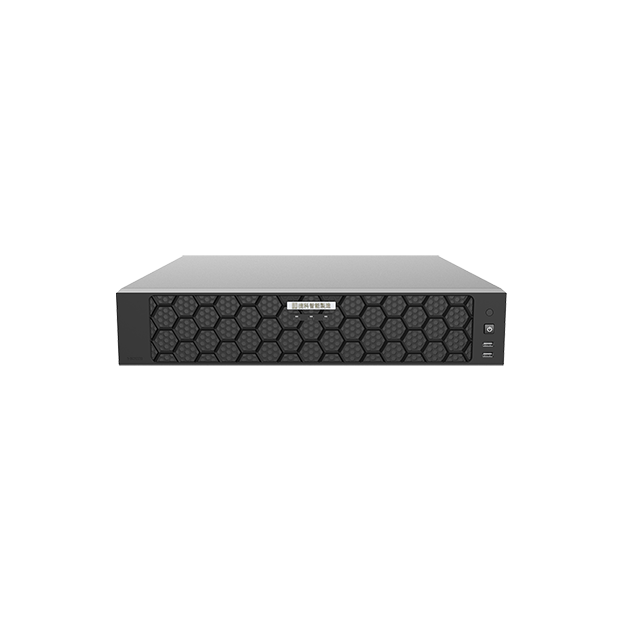

JV-T1108NU32 Video Recorder
JV-T1108NU32 Video Recorder
JV-T1108NU32 integrates multiple technologies such as audio and video decoding, data transmission, and storage, making it suitable for various application environments. The device has rich interfaces and can easily meet the needs of various monitoring networks.
DETAIL
1、Dual gigabit network card, supporting applications such as dual network IP settings
2、Can connect third-party cameras that comply with ONVIF and RTSP protocols
3、Supports H.265 and H.264 encoding
4、Support preview, storage, and playback of 12MP high-definition network images
5、Supports 1 HDMI and 1 VGA, with HDMI and VGA output from different sources. HDMI supports up to 4K display output
6、Each interface supports 500GB/1TB/2TB/3TB/4TB/5TB/6TB/8TB/10TB/12TB and other capacity hard drives (maximum hard drive capacity is affected by environmental temperature)
7、Support locking and unlocking of important recordings, and support recording before and after alarms
Specification parameters
1、Image decoding format: H.265、H.264
2、Local human-machine decoding capability：H.265：2x16MP@30,2x12MP@30,4x4K@30,6x5MP@30,8x4MP@30,9x4MP(2560*1440)@25,10x3MP@30,16x1080P@30,
32x720P@30 H.264：2x16MP(4800*2688)@30,2x12MP@30,2x4K@30,4x5MP@30,6x4MP@30,8x3MP@30,
14x1080P@30,30x720P@30,32xD1 Note: Under H.265, 9-channel 4MP full display only supports 2560 * 1440 resolution
3、Audio decoding format: G.711A、G.711U
4、Access broadband：320Mbps
5、Forwarding broadband：160Mbps
6、IPC access channels: 320-CH
7、Output port description: Supports 1 HDMI, 1 VGA, HDMI and VGA output in different directions, HDMI supports up to 4K display output
8、HDMI output port resolution: 1-channel HDMI resolution: 1024x768/60HZ、1280x720/60HZ、1280x1024/60HZ、1600x1200/60HZ、1920x1080/50HZ、1920x1080/60HZ、4K（3840x2160）/30HZ
9、VGA output port resolution: 1-channel VGA resolution:1024x768/60HZ、1280x720/60HZ、1280x1024/60HZ、1600x1200/60HZ、1920x1080/50HZ、1920x1080/60HZ
10、Live ordinary split screen：VGA:1/4/6/8/9/16/25/32 HDMI:1/4/6/8/9/16/25/32
11、Live corridor split screen:3/4/5/7/9/10/12/16/32
12、Voice intercom: a pair of voice intercom interfaces (multiplexed with audio input/output interfaces)
13、Video resolution：12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF
14、Number of human-machine synchronous playback channels: 16
15、Backup modes: video backup, image backup, playback clip backup
16、Disk position: 8 disk positions
17、Network ports: 2, RJ45 10M/100M/1000M Ethernet network
18、USB： 2 USB 2.0 ports; 1 USB 3.0
19、Power input: AC100～240V
20、Working temperature: -10 ℃~+55 ℃
21、Working humidity: 10%~90% (no condensation)
22、Power consumption (excluding hard drive): ≤ 25W
23、Dimensions: 89mm (height) x 431mm (depth) x 442mm (width)
