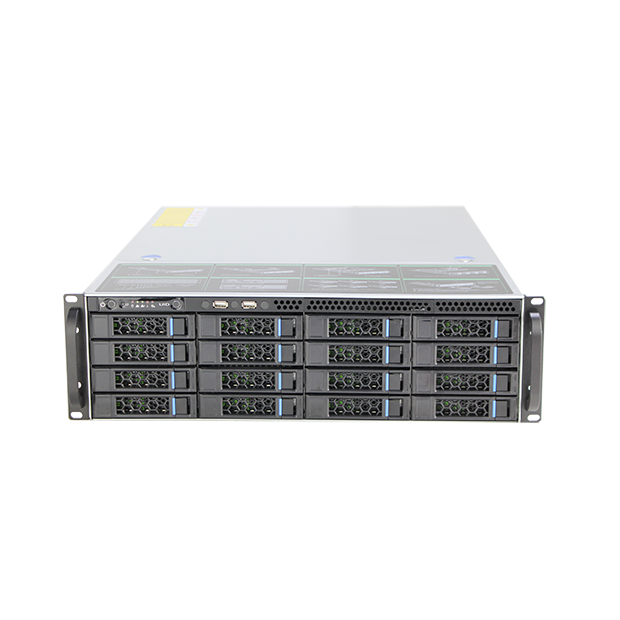

JV-T7616NQ64-I video server
JV-T7616NQ64-I video server
JV-T7616NQ64-I is an intelligent video server that is embedded with multiple intelligent detection algorithms and multiple linked image bounce real-time alarm methods, providing users with a safe, efficient, and comprehensive security monitoring solution.
DETAIL
1、Adopting an Intel Core i7-12700K, with twelve cores and twenty threads, operating at 3.6GHz
2、Supports multiple storage levels such as RAID0, 1, 5, 6, 10, 50, etc
3、Adopting a 550W 1+1 redundant power supply design to ensure stable power supply
4、Standard configuration: 64 IP cam authorized access (expandable to 128 channels)
5、Camera grouping and recording time setting function
6、User permission allocation and dual password management function
7、Intelligent recording and framing technology saves hard disk capacity
8、Support intelligent virtual marking triggering alarm (optional)
9、Standard configuration lock screen technology, non administrator user permissions cannot access and manage
10、Support electronic map management and receive alarm signals and image previews
11、Collaborative manufacturer equipment image alarm linkage, such as access control, temperature and humidity, infrared and other equipment
Specification parameters
1、Host channel interface: 2 Gigabit Ethernet ports
2、Hard drive slots: Supports 16 3.5-inch or 2.5-inch hard drives, with two 2.5-inch hot swappable hard drive slots at the back
3、Power supply: 550W 1+1 redundant power supply
4、Memory: 16GB
5、USB：2×USB3.0
6、RAID：RAID 0， More than 1, 5, 6, 10, and 50 storage levels
7、Video access: Standard configuration with 64 camera access authorization
8、Screen segmentation: 1/4/9/12/13/16/25/36
9、Encoding: Supports H.265 H.264
10、Frame extraction technology: supports unmanned still image automatic frame rate reduction, and automatic full frame recording when the image is dynamic
11、Display: Digital scaling of video images
12、Management: Multi user centralized management, setting different permissions, managing different cameras
13、Alarm: 11 alarm notification modes
14、Replay: 4-channel local synchronous replay, remote replay, intelligent detection and recording search
15、Log query: system logs, intelligent detection logs
16、Electronic map: Built in electronic map function
17、Recording modes: customizable recording mode, continuous recording, event recording, accelerated recording, and other recording modes
18、Intelligent detection: supports intelligent IVS video linkage alarm (optional)
19、License management: Multi user license allocation management, where different users can only monitor relevant surveillance footage
20、Alarm setting: Alarm user time period setting, for example: only send alerts after the end of working hours
21、Failover: Connect to the failover backup host (when the video server goes down, the backup host automatically takes over the recording work of the down host)
22、IP Bridge： Remote backup mechanism, supporting the backup of important area images to remote storage (optional)
23、Working temperature: 0 ℃ -40 ℃
24、Relative humidity: 8% -90% (non condensing)
25、Dimensions: Depth 650mm x Width 437.5mm x Height 132mm
