Gate machine

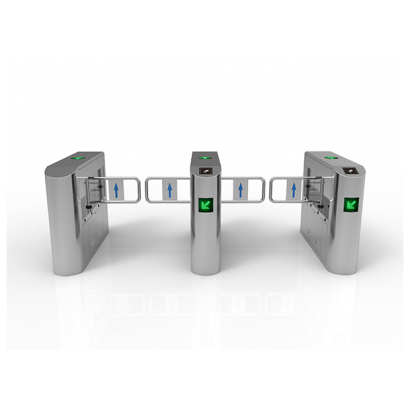

Swing gate
Swing gate
Swing gates are used for pedestrian access control and management in smart communities, hotels, guesthouses, office buildings, supermarkets, libraries, and other places.
DETAIL
2. Internal structure: Steel frame structure
3. Box size: length 1400 * width 280 * height 980MM
4. Arm length: about 450mm, channel length: about 900mm
5. Movement voltage: DC24V
6. Each channel gate is equipped with 4 pairs of infrared sensors
7. Gate opening and closing time: about 1 second
8. Adopting DC brushless motor, stable operation and high fatigue resistance
9. The communication interface supports RS232 TCP/IP， Increased flexibility in control
10. Waterproof, sunscreen, cold resistant, high temperature resistant
11. After swiping the card, pedestrians are only allowed to move in one direction; If passing in the opposite direction, an alarm will sound, and in some cases, the swing arm will quickly close
12. If forcefully entering without opening the swing arm, the swing arm will rotate a certain angle to buffer and immediately lock
13. Can be expanded into an automatic identity recognition system to achieve functions such as access control, attendance, etc
14. After obtaining the gate crossing permission, if there is no gate crossing within the set time, the permission will be automatically cancelled and restored to the initial state
