Video Recorder

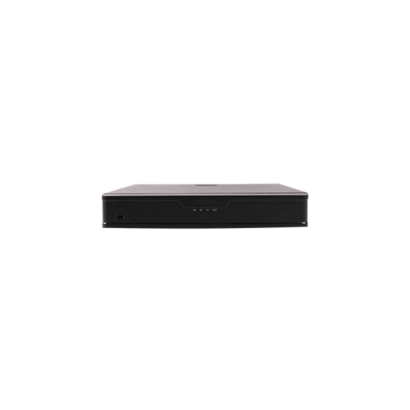

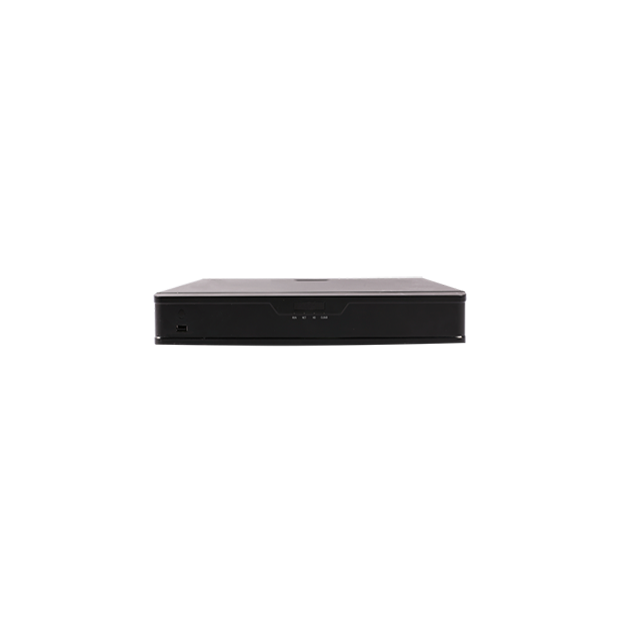

JV-T1102NU16 Video Recorder
JV-T1102NU16 Video Recorder
JV-T1102N16 Video Recorder is a cost-effective NVR that integrates various technologies such as image and sound decoding, data transmission, and storage. It is suitable for various application environments and can be directly connected to IPC for independent networking and local preview.
DETAIL
1、Can connect to third-party cameras that comply with ONVIF and RTSP protocols
2、Support U-Code intelligent coding technology; Supports H.265 and H.264 encoding
3、Audio decoding: G.711
4、1 audio output
5、Support video editing and backup
6、Instant replay, regular replay, event replay, tag replay, smart replay, image replay, external file replay
7、Each interface supports 500GB/1TB/2TB/3TB/4TB/5TB/6TB/8TB and other capacity hard drives
8、Working temperature: -10 ℃~+55 ℃
9、Working humidity: 10%~90% (without condensation)
Specification parameters
1、Image decoding: Supports H.265 H.264
2、Decoding ability: 1x12MP@20 ， 1x4K@30 ， 2x4MP@30 ， 4x1080p@30 , 8x 720p@30 ， 16xD1
3、Network video input: 16 channels
4、Network video access bandwidth：112Mbps
5、Preview split screen: 1/4/6/8/9/16 screen
6、Recording resolution: 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF
7、Synchronous replay: 16 channels
8、Backup modes: regular backup, video clip backup
9、Hard drive interface: 2 SATA interfaces
10、Ethernet: 1, RJ45 10M/100M/1000M Ethernet
11、USB： 2 USB 2.0 ports
12、Power supply: DC 12V
13、Power consumption (excluding hard drive): ≤ 7W
14、Working temperature/humidity: -10 ℃~+55 ℃/10%~90% (without condensation)
15、size：44mm×315mm×380mm
