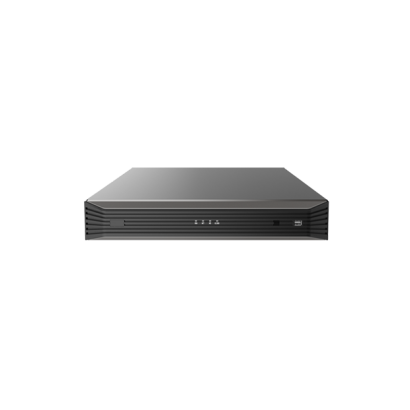

JV-T1104NU32 Video Recorder
JV-T1104NU32 Video Recorder
JV-T1104NU32 integrates various technologies such as audio and video decoding, data transmission, and storage, and is suitable for various indoor and outdoor application environments. The device has rich interfaces and can easily meet the needs of various indoor and outdoor monitoring networks.
DETAIL
1、Dual gigabit network card, supporting applications such as dual network IP settings
2、Can connect third-party cameras that comply with ONVIF and RTSP protocols
3、Supports H.265 and H.264 encoding
4、Support preview, storage, and playback of 4K high-definition network videos
5、Supports 1 HDMI and 1 VGA display output
6、Each interface supports 500GB/1TB/2TB/3TB/4TB/5TB/6TB/8TB and other capacity hard drives (maximum hard drive capacity is affected by ambient temperature)
7、Support locking and unlocking of important recordings, support recording before and after alarms
Specification parameters
1、Video decoding format: H.265、H.264
2、Local human-machine decoding capability: 2x4K@30 , 4x4MP@30 , 8x1080p@30 , 16x720p@30 , 32xD1
3、Audio decoding format: G.711A、G.711U
4、Access bandwidth: 160Mbps
5、Forwarding bandwidth: 64Mbps
6、IPC access channels: 32 channels
7、Output port description: Supports 1 HDMI, 1 VGA, HDMI and VGA output simultaneously, HDMI supports 4K output
8、HDMI output port resolution: 1 channel HDMI resolution: 1024x768/60HZ, 1280x720/60HZ, 1280x1024/60HZ, 1600x1200/60HZ, 1920x1080/50HZ, 1920x1080/60HZ, 4K (3840x2160)/30HZ
9、VGA output port resolution: 1-channel VGA resolution: 1024x768/60HZ, 1280x720/60HZ, 1280x1024/60HZ, 1600x1200/60HZ, 1920x1080/50HZ, 1920x1080/60HZ
10、Live ordinary split screen: 1/4/6/8/9/16/25/36
11、Live corridor split screen: 3/4/5/7/9/10/12/16/32
12、Recording resolution: 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF
13、Plan/Event Capture (FTP Upload): 4-channel capture (highest D1 resolution)
14、Recording resolution: 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF
15、Number of human-machine synchronous playback channels: 16
16、Playback modes: real-time playback, normal playback, corridor playback, event playback, tag playback, smart playback, image playback, external file playback
17、Backup modes: video backup, image backup, playback clip backup
18、Disk position: 4 disk positions
19、Network ports: 2, RJ45 10M/100M/1000M Ethernet
20、USB： 2 USB 2.0 ports; 1 USB 3.0
21、Power input: DC 12V/5A
22、Working temperature: -10 ℃~+55 ℃
23、Working humidity: 10%~90% (no condensation)
24、Power consumption (excluding hard drive): ≤ 15W
25、Dimensions: 48mm (height) x 342mm (depth) x 440mm (width)
